3 m 3 m = 6. The axis of the three-hinge arch ABC is a parabola with the vertex at B. Know- ing that P 120 kN and Q = 15
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3 m 3 m = 6. The axis of the three-hinge arch ABC is a parabola with the vertex at B. Know- ing that P 120 kN and Q = 15

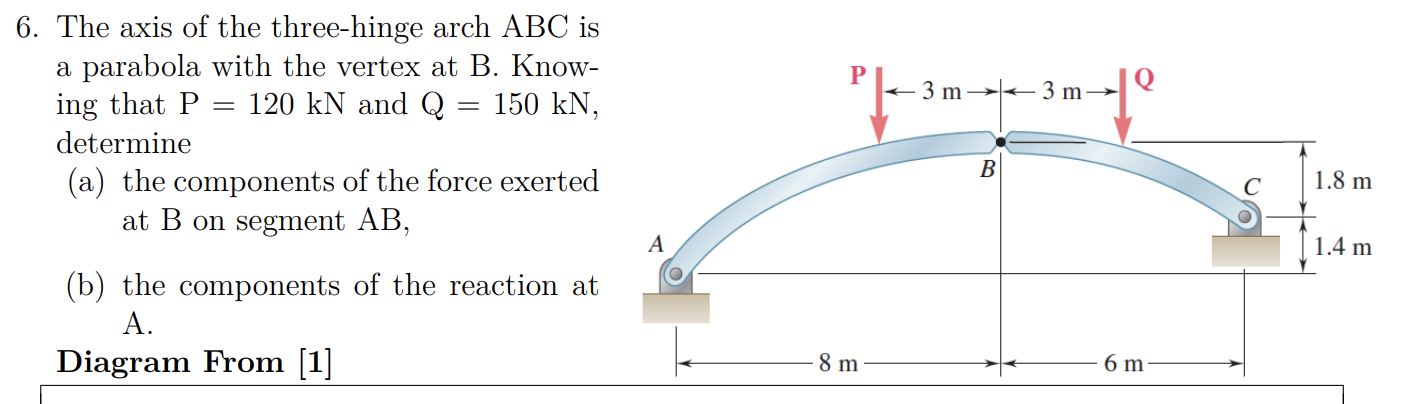

3 m 3 m = 6. The axis of the three-hinge arch ABC is a parabola with the vertex at B. Know- ing that P 120 kN and Q = 150 kN, determine (a) the components of the force exerted at B on segment AB, 1 B 1.8 m A 1.4 m (b) the components of the reaction at A. Diagram From [1] 8 m 6 m
