x Х X Determine the components of the reactions at A and E if the frame is loaded by a clockwise couple of magnitude 80

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

x Х X Determine the components of the reactions at A and E if the frame is loaded by a clockwise couple of magnitude 80

Post by answerhappygod »

1
1 (89.86 KiB) Viewed 23 times

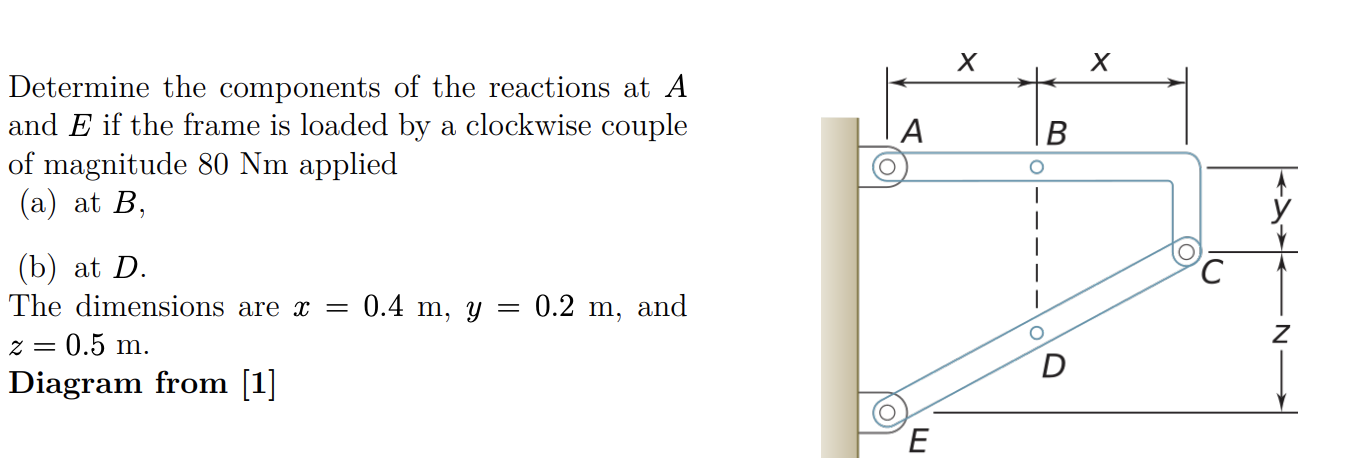

x Х X Determine the components of the reactions at A and E if the frame is loaded by a clockwise couple of magnitude 80 Nm applied (a) at B, В С 1 (b) at D. The dimensions are x = 0.4 m, y = 0.2 m, and z = 0.5 m. Diagram from [1] O Z = D E
