Question 2 The plane frame ABCDEF shown in Figure Q2 is subjected to vertical forces Pat A and B. and 2 at C and D. The

[answerhappygod]

Question 2 The Plane Frame Abcdef Shown In Figure Q2 Is Subjected To Vertical Forces Pat A And B And 2 At C And D The 1 (38.94 KiB) Viewed 33 times

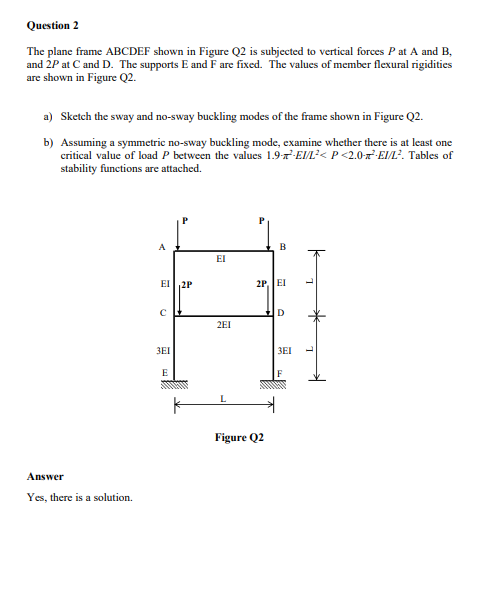

Question 2 The plane frame ABCDEF shown in Figure Q2 is subjected to vertical forces Pat A and B. and 2 at C and D. The supports E and F are fixed. The values of member flexural rigidities are shown in Figure Q2. a) Sketch the sway and no-sway buckling modes of the frame shown in Figure Q2. b) Assuming a symmetric no-sway buckling mode, examine whether there is at least one critical value of load P between the values 1.97El/l< P<2.0-2 E1/L? Tables of stability functions are attached. A B ΕΙ L EI 12P 2P. EI с D * 2EI ЗЕІ ЗЕТ L E F Figure Q2 Answer Yes, there is a solution.
