Name ENCE 3318 Spring 2022 HW11 1) Draw the HGL (solid line) and EGL (dashed) for the system shown below. You may do thi

Post by answerhappygod »

Name Ence 3318 Spring 2022 Hw11 1 Draw The Hgl Solid Line And Egl Dashed For The System Shown Below You May Do Thi 1
Name Ence 3318 Spring 2022 Hw11 1 Draw The Hgl Solid Line And Egl Dashed For The System Shown Below You May Do Thi 1 (30.59 KiB) Viewed 33 times

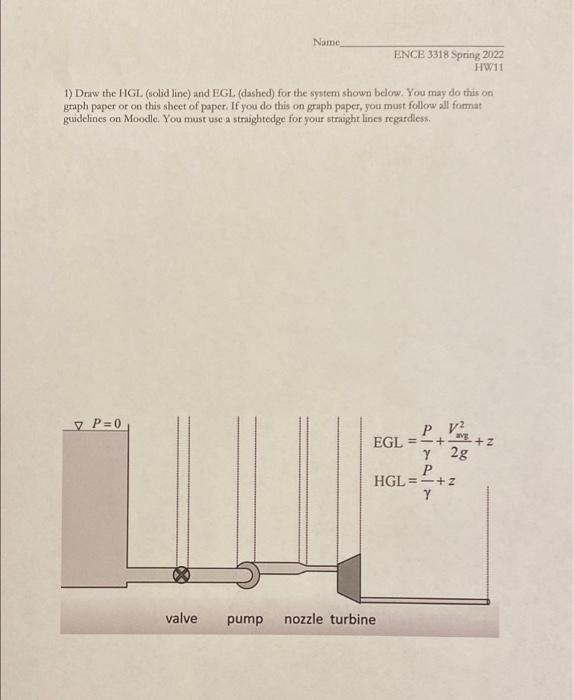

Name ENCE 3318 Spring 2022 HW11 1) Draw the HGL (solid line) and EGL (dashed) for the system shown below. You may do this on graph paper or on this sheet of paper. If you do this on graph paper, you must follow all format guidelines on Moodle. You must use a straightedge for your straight lines regardless y P=0 Pv2 EGL = =+ 2 + z 7 28 P HGL = =+z Y valve pump nozzle turbine
