9:34 AM Tue 26 Apr . 91% myelearning.sta.uwi.edu - Private Q2 Marks Figure Q2 shows the soil profile at a site for a pro

[answerhappygod]

9 34 Am Tue 26 Apr 91 Myelearning Sta Uwi Edu Private Q2 Marks Figure Q2 Shows The Soil Profile At A Site For A Pro 1 (167.48 KiB) Viewed 41 times

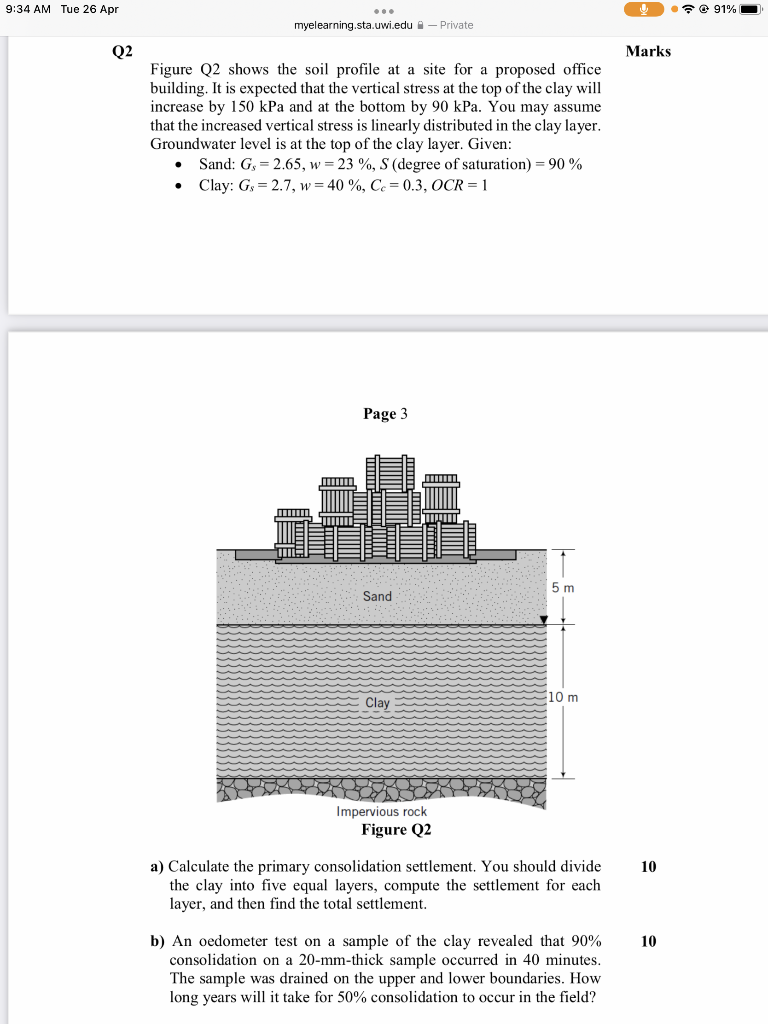

9:34 AM Tue 26 Apr . 91% myelearning.sta.uwi.edu - Private Q2 Marks Figure Q2 shows the soil profile at a site for a proposed office building. It is expected that the vertical stress at the top of the clay will increase by 150 kPa and at the bottom by 90 kPa. You may assume that the increased vertical stress is linearly distributed in the clay layer. Groundwater level is at the top of the clay layer. Given: Sand: Gz = 2.65, w = 23 %, S (degree of saturation) = 90% Clay: G: = 2.7, w=40%, Ce = 0.3, OCR= 1 Page 3 5 m Sand Clay 10 m Impervious rock Figure Q2 10 a) Calculate the primary consolidation settlement. You should divide the clay into five equal layers, compute the settlement for each layer, and then find the total settlement. 10 b) An oedometer test on a sample of the clay revealed that 90% consolidation on a 20-mm-thick sample occurred in 40 minutes. The sample was drained on the upper and lower boundaries. How long years will it take for 50% consolidation to occur in the field?
