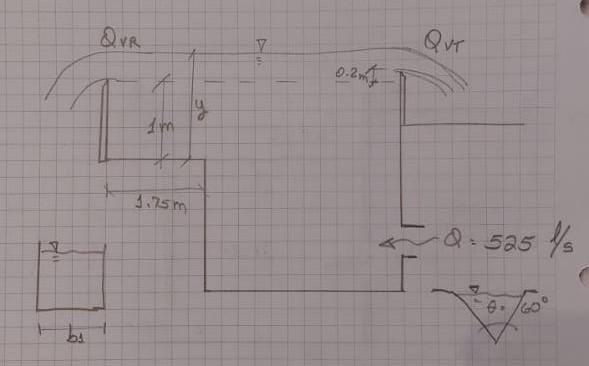

The flow rate Q entering the tank is 525 l/s and it pours over
the upper triangular weir, with a 60° vertex angle, and over the
lower rectangular one with a crest length of 1m, the latter without
lateral contractions. Determine the level of the water in the tank
and the rate discharged by each weir.
The Flow Rate Q Entering The Tank Is 525 L S And It Pours Over The Upper Triangular Weir With A 60 Vertex Angle And O 1 (21.3 KiB) Viewed 21 times
QUR V Qur A 0.27 ss im 1.75m -Q.595 Yes - CE be
