Problem 2: The beam shown is subjected to axial tensile force P=20 kN and a couple of 15 kN.m as shown. The beam has a s

Post by answerhappygod »

Problem 2 The Beam Shown Is Subjected To Axial Tensile Force P 20 Kn And A Couple Of 15 Kn M As Shown The Beam Has A S 1
Problem 2 The Beam Shown Is Subjected To Axial Tensile Force P 20 Kn And A Couple Of 15 Kn M As Shown The Beam Has A S 1 (20.47 KiB) Viewed 39 times

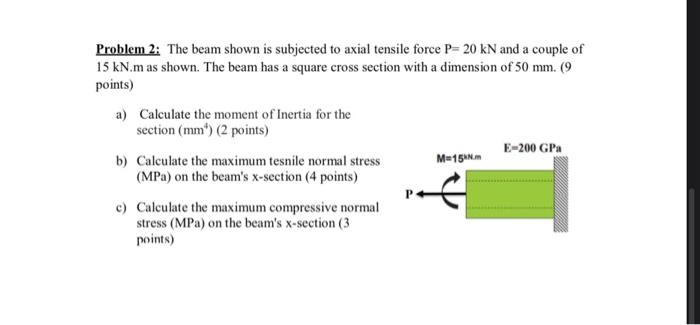

Problem 2: The beam shown is subjected to axial tensile force P=20 kN and a couple of 15 kN.m as shown. The beam has a square cross section with a dimension of 50 mm. (9 points) a) Calculate the moment of Inertia for the section (mm) (2 points) E-200 Pa b) Calculate the maximum tesnile normal stress M-15. (MPa) on the beam's X-section (4 points) c) Calculate the maximum compressive normal stress (MPa) on the beam's X-section (3 points)
