3. a) For the bolted connection shown in the figure below, determine the maximum value for P, by determining the capacit

[answerhappygod]

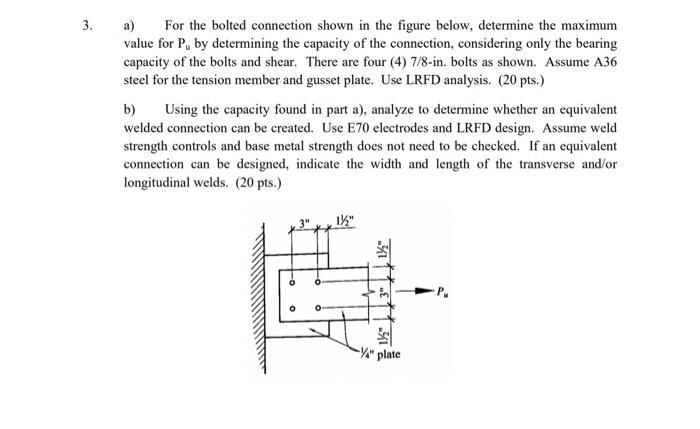

3 A For The Bolted Connection Shown In The Figure Below Determine The Maximum Value For P By Determining The Capacit 1 (35.61 KiB) Viewed 24 times

3. a) For the bolted connection shown in the figure below, determine the maximum value for P, by determining the capacity of the connection, considering only the bearing capacity of the bolts and shear. There are four (4) 7/8-in. bolts as shown. Assume A36 steel for the tension member and gusset plate. Use LRFD analysis. (20 pts.) b) Using the capacity found in part a), analyze to determine whether an equivalent welded connection can be created. Use E70 electrodes and LRFD design. Assume weld strength controls and base metal strength does not need to be checked. If an equivalent connection can be designed, indicate the width and length of the transverse and/or longitudinal welds. (20 pts.) 1/2" Hi 0- -P. o ST y" plate
