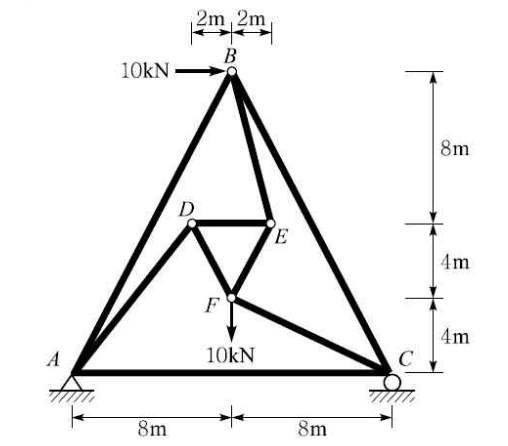

Find all member forces in the composite truss as shown in the figure. (Specify whether the member is tension or compression.)
- Find All Member Forces In The Composite Truss As Shown In The Figure Specify Whether The Member Is Tension Or Compress 1 (20.81 KiB) Viewed 27 times
*answer:

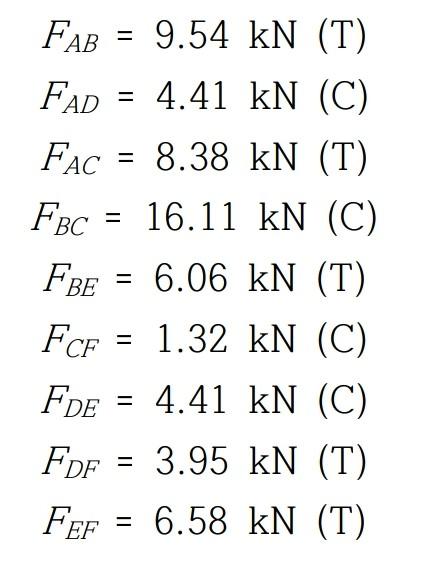

- Find All Member Forces In The Composite Truss As Shown In The Figure Specify Whether The Member Is Tension Or Compress 2 (31.53 KiB) Viewed 27 times
2m 2m B 10KN 8m D E 4m F 4m A 10KN 8m 8m
FAB = = = 9.54 kN (T) FAD 4.41 kN (C) FAC = 8.38 kN (T) FBc = 16.11 kN (C) FBE 6.06 kN (T) 1.32 kN (C) FDE = 4.41 kN (C) ( FDF = 3.95 kN (T) 6.58 kN (T) = FCF = = = FEF =
