Problem 1 (4 points): In the schematic in Figure 1, the cylindrical circular gate, with a length L= 2 m and a radius R=4

[answerhappygod]

Problem 1 4 Points In The Schematic In Figure 1 The Cylindrical Circular Gate With A Length L 2 M And A Radius R 4 1 (31.17 KiB) Viewed 22 times

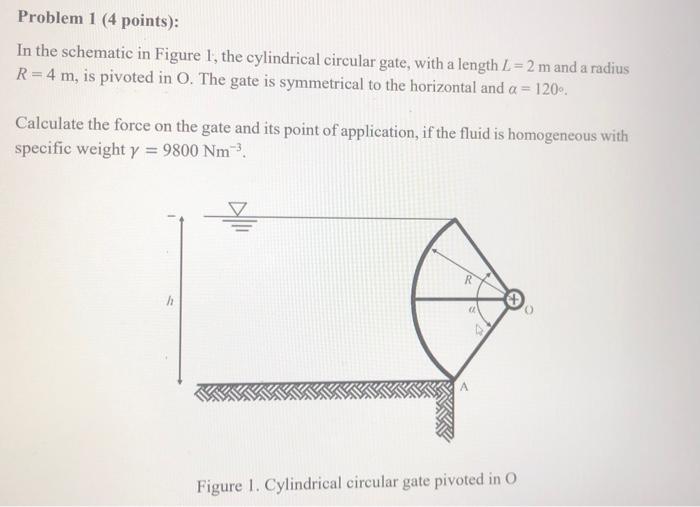

Problem 1 (4 points): In the schematic in Figure 1, the cylindrical circular gate, with a length L= 2 m and a radius R=4 m, is pivoted in 0. The gate is symmetrical to the horizontal and a = 120. Calculate the force on the gate and its point of application, if the fluid is homogeneous with specific weight y = 9800 Nm"? Figure 1. Cylindrical circular gate pivoted in 0
