5. The piece of wood, 100 mm by 100 mm in cross section, contains a glued joint inclined at the angle with the vertical.

Post by answerhappygod »

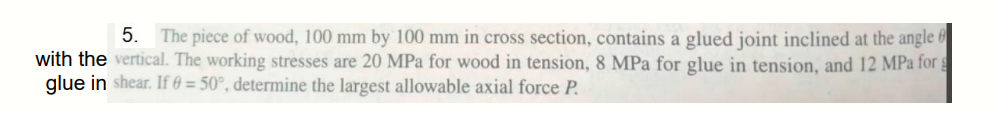

5 The Piece Of Wood 100 Mm By 100 Mm In Cross Section Contains A Glued Joint Inclined At The Angle With The Vertical 1
5 The Piece Of Wood 100 Mm By 100 Mm In Cross Section Contains A Glued Joint Inclined At The Angle With The Vertical 1 (98.48 KiB) Viewed 80 times
5. The piece of wood, 100 mm by 100 mm in cross section, contains a glued joint inclined at the angle with the vertical. The working stresses are 20 MPa for wood in tension, 8 MPa for glue in tension, and 12 MPa for glue in shear. If 8 = 50°, determine the largest allowable axial force P.
