4. The rectangular piece of wood, 50 mm by 100 mm, is used as a compression block. The grain of the wood makes a 20° ang

Post by answerhappygod »

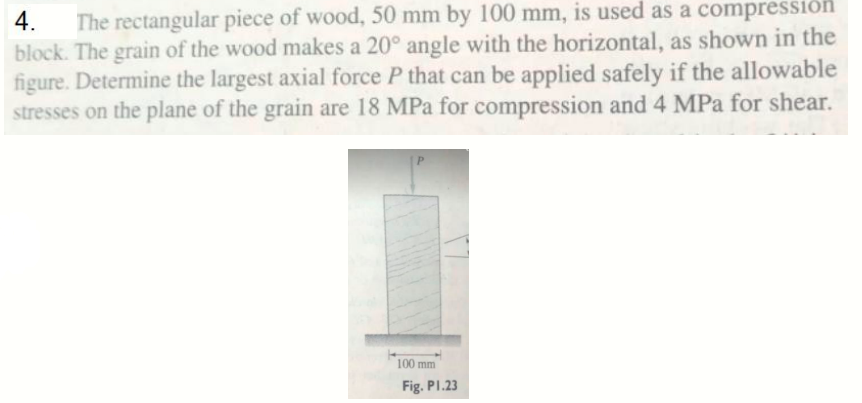

4 The Rectangular Piece Of Wood 50 Mm By 100 Mm Is Used As A Compression Block The Grain Of The Wood Makes A 20 Ang 1
4 The Rectangular Piece Of Wood 50 Mm By 100 Mm Is Used As A Compression Block The Grain Of The Wood Makes A 20 Ang 1 (190.03 KiB) Viewed 33 times
4. The rectangular piece of wood, 50 mm by 100 mm, is used as a compression block. The grain of the wood makes a 20° angle with the horizontal, as shown in the figure. Determine the largest axial force P that can be applied safely if the allowable stresses on the plane of the grain are 18 MPa for compression and 4 MPa for shear. 100 mm Fig. P1.23
