Problem 1: A simply supported beam shown is loaded with 50 kN/m uniform load and has a box cross section. Use E= 200 GPa

[answerhappygod]

Problem 1 A Simply Supported Beam Shown Is Loaded With 50 Kn M Uniform Load And Has A Box Cross Section Use E 200 Gpa 1 (26.72 KiB) Viewed 17 times

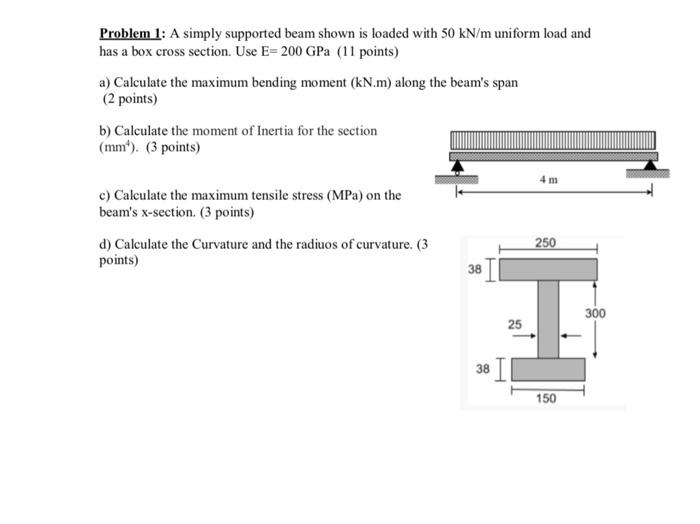

Problem 1: A simply supported beam shown is loaded with 50 kN/m uniform load and has a box cross section. Use E= 200 GPa (11 points) a) Calculate the maximum bending moment (kN.m) along the beam's span (2 points) b) Calculate the moment of Inertia for the section (mm). (3 points) 4 m c) Calculate the maximum tensile stress (MPa) on the beam's X-section. (3 points) d) Calculate the Curvature and the radiuos of curvature. (3 points) 250 38 300 25 38 150
