This is just one question, but divided into 6 small
parts.
Please, answer the main question and give the 6 small parts like
"1: answer; 2: answer...".
Read The Whole Question There Is Another Similar Question But Is Not Correct Do Not Copy Answers I Need New Answers 1 (207.21 KiB) Viewed 21 times

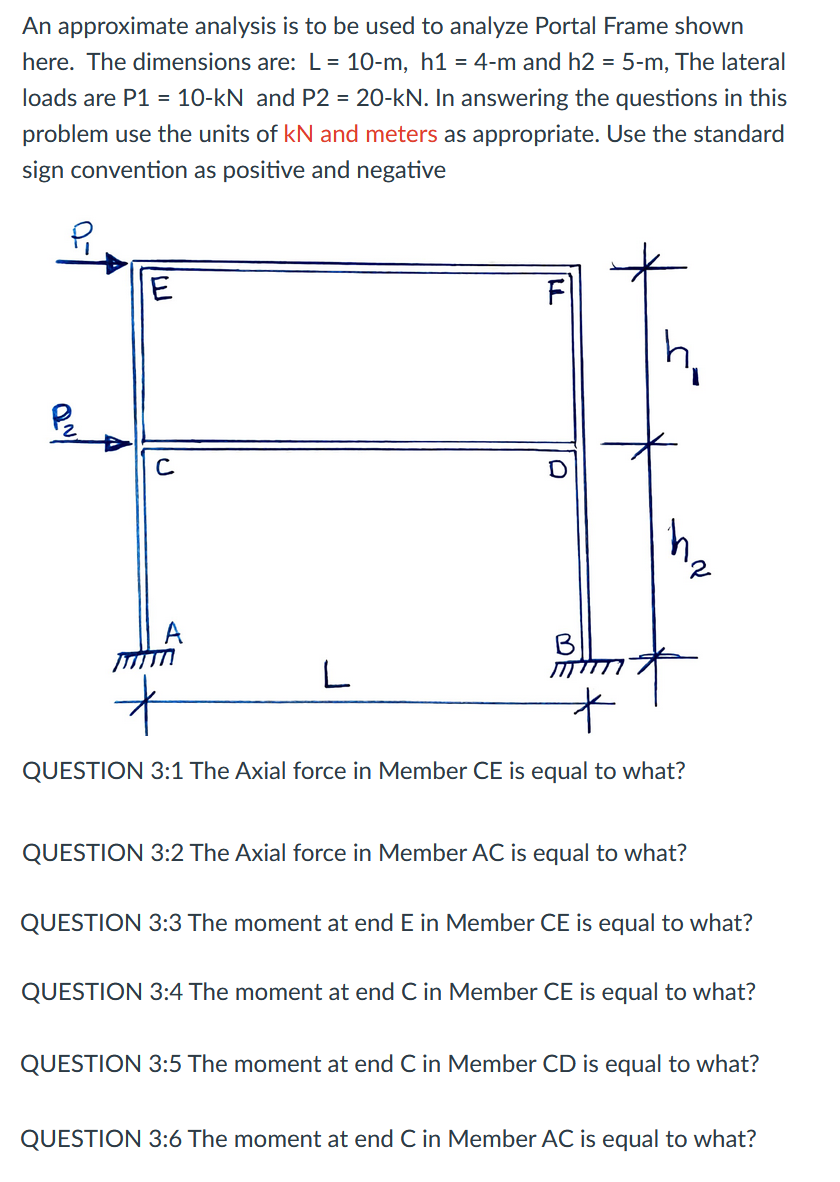

An approximate analysis is to be used to analyze Portal Frame shown here. The dimensions are: L = 10-m, h1 = 4-m and h2 = 5-m, The lateral loads are P1 = 10-kN and P2 = 20-kN. In answering the questions in this problem use the units of kN and meters as appropriate. Use the standard sign convention as positive and negative LE h. P2 물 t С. C o ih L it QUESTION 3:1 The Axial force in Member CE is equal to what? QUESTION 3:2 The Axial force in Member AC is equal to what? QUESTION 3:3 The moment at end Ein Member CE is equal to what? QUESTION 3:4 The moment at end C in Member CE is equal to what? QUESTION 3:5 The moment at end C in Member CD is equal to what? QUESTION 3:6 The moment at end C in Member AC is equal to what?
