This is just one question, but divided into 25 small
parts.
Please, answer the main question and give the 25 small parts like
"1: answer; 2: answer...".
Read The Whole Question There Is Another Similar Question But Is Not Correct Do Not Copy Answers I Need New Answers 1 (489.69 KiB) Viewed 19 times

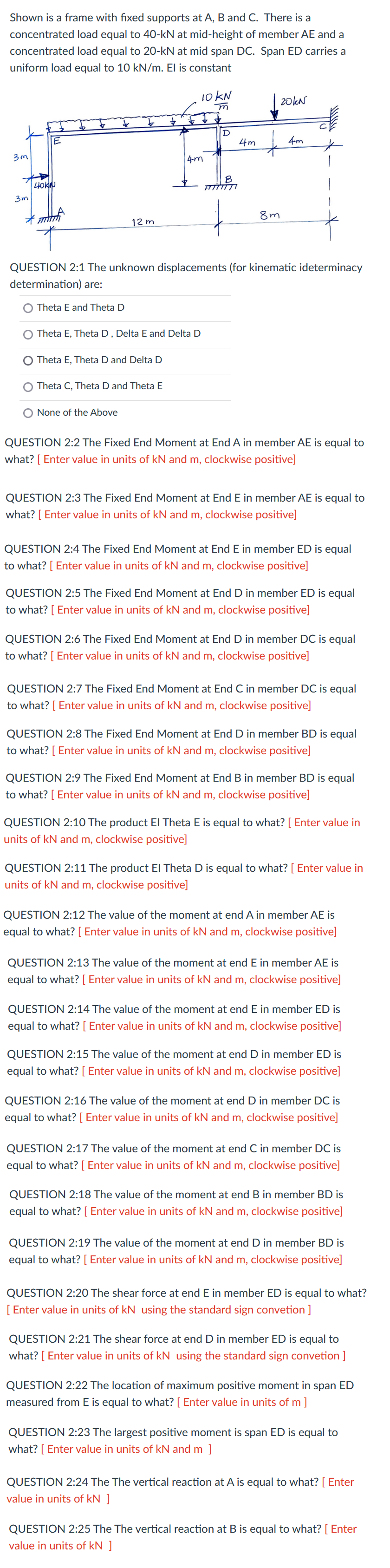

Shown is a frame with fixed supports at A, B and C. There is a concentrated load equal to 40-kN at mid-height of member AE and a concentrated load equal to 20-kN at mid span DC. Span ED carries a uniform load equal to 10 kN/m. El is constant 10 KN m | 20kn D E 4m 4m 3m 14m 7 B 40kk 3m WILA 8m 12 m QUESTION 2:1 The unknown displacements (for kinematic ideterminacy determination) are: O Theta E and Theta D O Theta E, Theta D, Delta E and Delta D O Theta E, Theta D and Delta D Theta C, Theta D and Theta E O None of the Above QUESTION 2:2 The Fixed End Moment at End A in member AE is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:3 The Fixed End Moment at End E in member AE is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:4 The Fixed End Moment at End E in member ED is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:5 The Fixed End Moment at End D in member ED is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:6 The Fixed End Moment at End D in member DC is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:7 The Fixed End Moment at End C in member DC is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:8 The Fixed End Moment at End D in member BD is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:9 The Fixed End Moment at End B in member BD is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:10 The product El Theta E is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:11 The product El Theta D is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:12 The value of the moment at end A in member AE is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:13 The value of the moment at end E in member AE is equal to what? [ Enter value in units of kN and m, clockwise positive QUESTION 2:14 The value of the moment at end Ein member ED is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:15 The value of the moment at end D in member ED is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:16 The value of the moment at end D in member DC is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:17 The value of the moment at end C in member DC is equal to what?[Enter value in units of kN and m, clockwise positive] QUESTION 2:18 The value of the moment at end B in member BD is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:19 The value of the moment at end D in member BD is equal to what? [ Enter value in units of kN and m, clockwise positive] QUESTION 2:20 The shear force at end E in member ED is equal to what? [Enter value in units of kN using the standard sign convetion ] QUESTION 2:21 The shear force at end D in member ED is equal to what? [ Enter value in units of kN using the standard sign convetion] QUESTION 2:22 The location of maximum positive moment in span ED measured from E is equal to what? [ Enter value in units of m] QUESTION 2:23 The largest positive moment is span ED is equal to what? [ Enter value in units of kN and m ] QUESTION 2:24 The The vertical reaction at A is equal to what? [ Enter value in units of kN ] QUESTION 2:25 The The vertical reaction at B is equal to what? [ Enter value in units of kN ]
