Draw neccessary diagrams

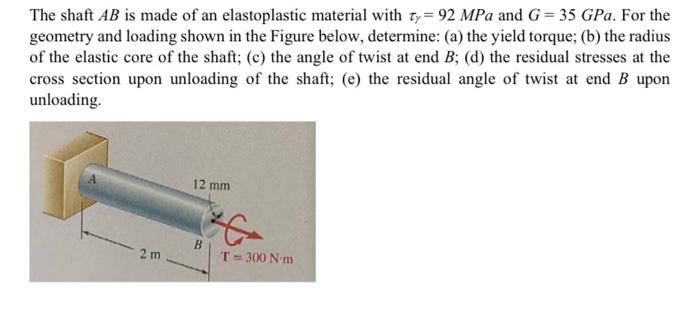

The shaft AB is made of an elastoplastic material with ty = 92 MPa and G = 35 GPa. For the geometry and loading shown in the Figure below, determine: (a) the yield torque; (b) the radius of the elastic core of the shaft; (c) the angle of twist at end B; (d) the residual stresses at the cross section upon unloading of the shaft; (e) the residual angle of twist at end B upon unloading. 12 mm B 2 m T = 300 Nm
