Part 2: Calculate the following: a) Normal reactions (N) of bar CD to the cylinder b) Horizontal reaction (AH) on rod AB

[answerhappygod]

Part 2 Calculate The Following A Normal Reactions N Of Bar Cd To The Cylinder B Horizontal Reaction Ah On Rod Ab 1 (106.54 KiB) Viewed 16 times

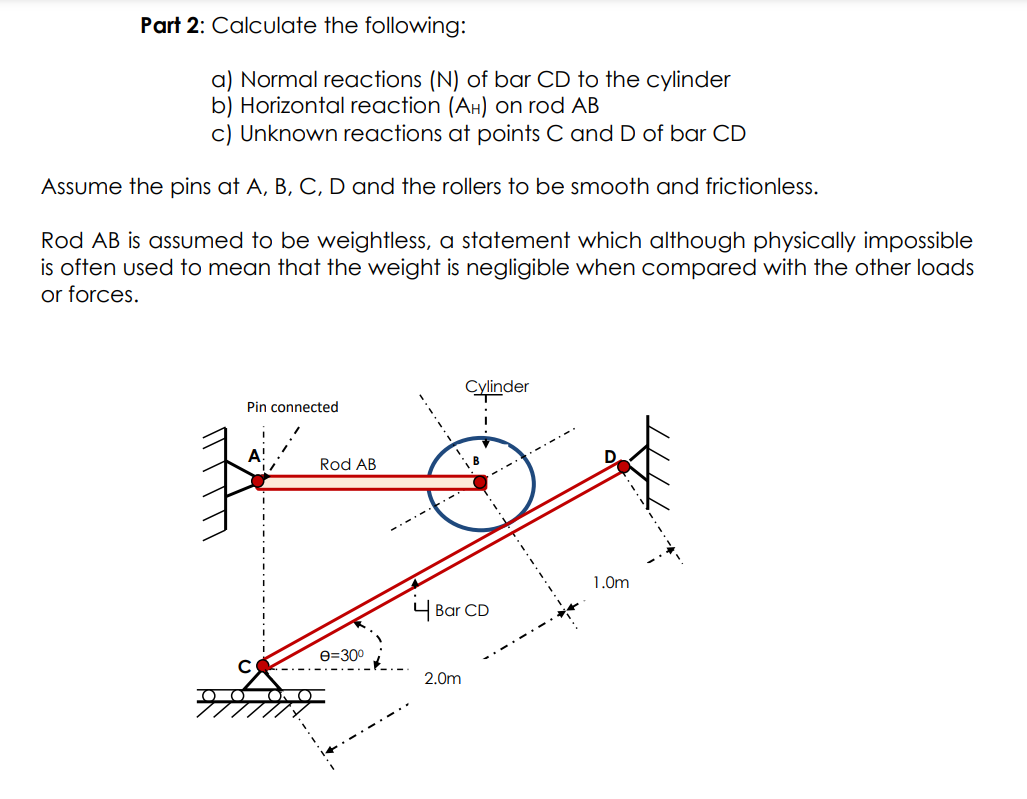

Part 2: Calculate the following: a) Normal reactions (N) of bar CD to the cylinder b) Horizontal reaction (AH) on rod AB c) Unknown reactions at points C and D of bar CD Assume the pins at A, B, C, D and the rollers to be smooth and frictionless. Rod AB is assumed to be weightless, a statement which although physically impossible is often used to mean that the weight is negligible when compared with the other loads or forces. Cylinder Pin connected WW Rod AB 1.Om 4 Bar CD O=300 2.Om
