QUESTION 2 Three-hinged arch is connected at joint C as shown in Figure Q2. This arch, AC is subjected to the uniformly

Post by answerhappygod »

Question 2 Three Hinged Arch Is Connected At Joint C As Shown In Figure Q2 This Arch Ac Is Subjected To The Uniformly 1
Question 2 Three Hinged Arch Is Connected At Joint C As Shown In Figure Q2 This Arch Ac Is Subjected To The Uniformly 1 (25.55 KiB) Viewed 15 times

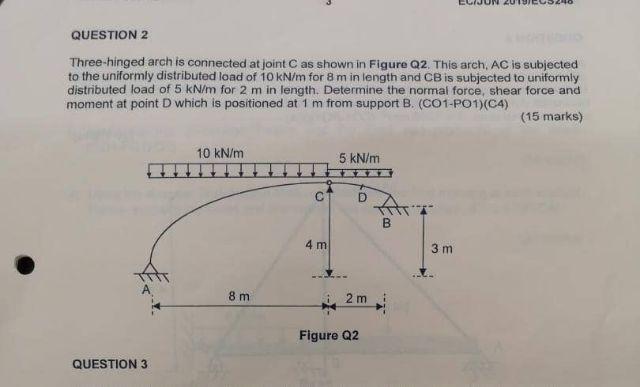

QUESTION 2 Three-hinged arch is connected at joint C as shown in Figure Q2. This arch, AC is subjected to the uniformly distributed load of 10 kN/m for 8 min length and CB is subjected to uniformly distributed load of 5 kN/m for 2 m in length. Determine the normal force, shear force and moment at point D which is positioned at 1 m from support B. (CO1-P01)(C4) (15 marks) 10 kN/m 5 kN/m B 4 m 3 m 8 m 2 m Figure Q2 QUESTION 3
