Determine the moments at B, C, and D, then draw the moment diagram for the beam. El is constant. Using these methods: 1-

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Determine the moments at B, C, and D, then draw the moment diagram for the beam. El is constant. Using these methods: 1-

Post by answerhappygod »

Determine The Moments At B C And D Then Draw The Moment Diagram For The Beam El Is Constant Using These Methods 1 1
Determine The Moments At B C And D Then Draw The Moment Diagram For The Beam El Is Constant Using These Methods 1 1 (35.95 KiB) Viewed 22 times

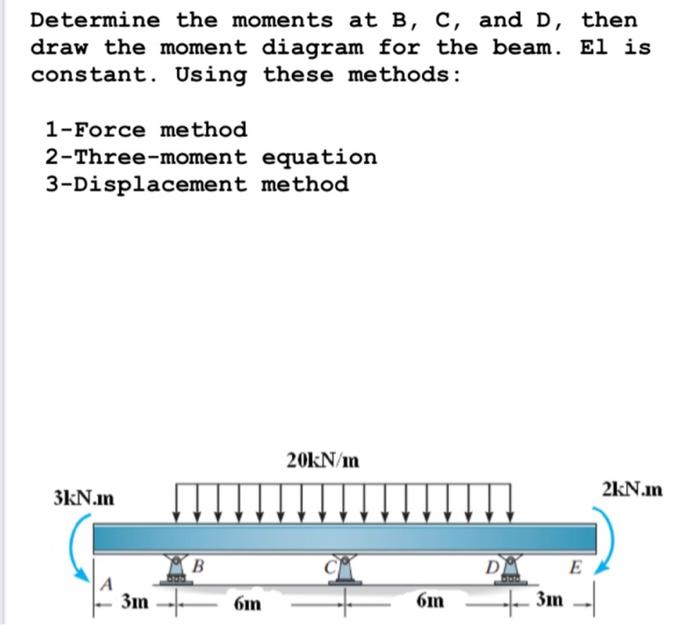

Determine the moments at B, C, and D, then draw the moment diagram for the beam. El is constant. Using these methods: 1-Force method 2-Three-moment equation 3-Displacement method 20kN/m 3kN.mn IIIIIIII 2kN.In B D E А Заn бin бin 3m
