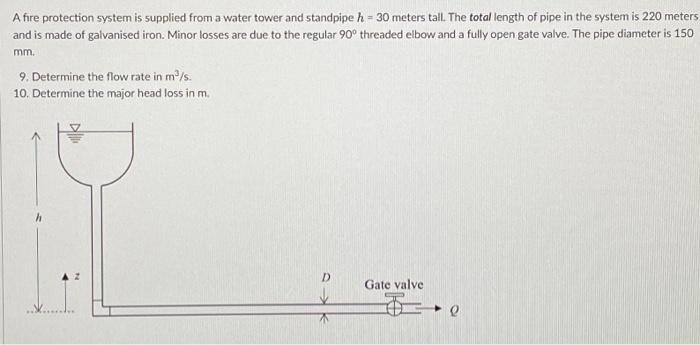

A fire protection system is supplied from a water tower and standpipe h - 30 meters tall. The total length of pipe in the system is 220 meters and is made of galvanised iron. Minor losses are due to the regular 90° threaded elbow and a fully open gate valve. The pipe diameter is 150 mm 9. Determine the flow rate in m/s. 10. Determine the major head loss in m. h D Gate valve 五二0

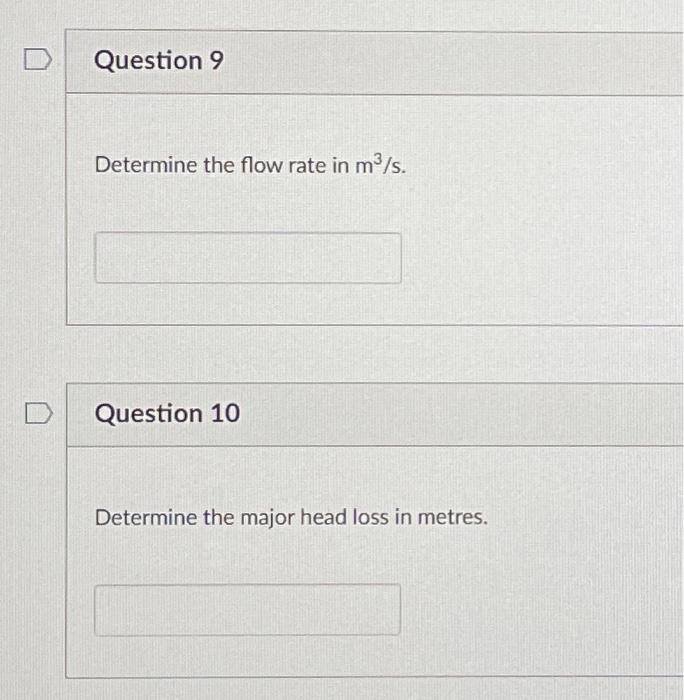

Question 9 Determine the flow rate in m/s. Question 10 Determine the major head loss in metres,
