(3). Three reservoirs (1), (2) and (3) are connected by three pipes as shown below. All pipe diameters are 0.3 m, the fr

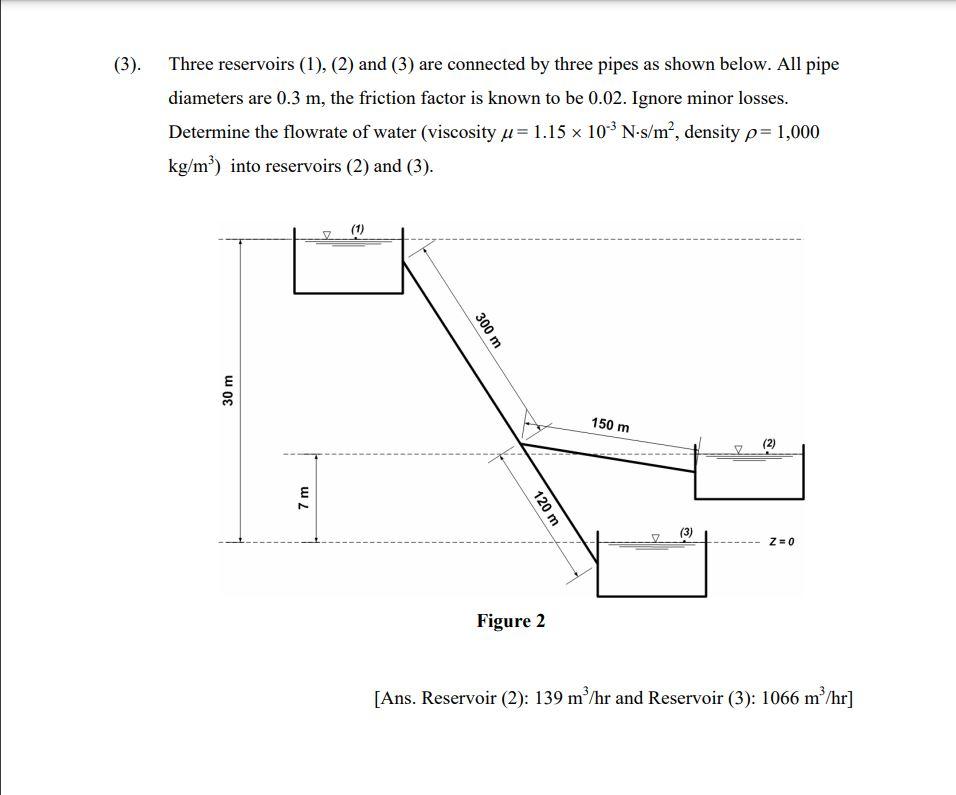

(3). Three reservoirs (1), (2) and (3) are connected by three pipes as shown below. All pipe diameters are 0.3 m, the friction factor is known to be 0.02. Ignore minor losses. Determine the flowrate of water (viscosity u= 1.15 x 10- N-s/m², density p= 1,000 kg/m) into reservoirs (2) and (3). (1) 300 m w 30 m 150 m 7 m 120 m 7 Z=0 Figure 2 [Ans. Reservoir (2): 139 mạ/hr and Reservoir (3): 1066 m²/hr]
