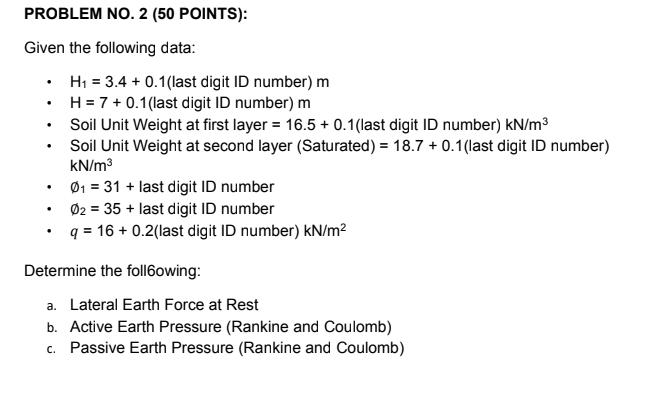

- Problem No 2 50 Points Given The Following Data H1 3 4 0 1 Last Digit Id Number M H 7 0 1 Last Digit 1 (48.38 KiB) Viewed 43 times
PROBLEM NO. 2 (50 POINTS): . . . Given the following data: H1 = 3.4 +0.1(last digit ID number) m H = 7 + 0.1(last digit ID number) m • Soil Unit Weight at first layer = 16.5 +0.1(last digit ID number) kN/m3 Soil Unit Weight at second layer (Saturated) = 18.7 +0.1(last digit ID number) kN/m 01 = 31 + last digit ID number 02 = 35 + last digit ID number q = 16 + 0.2(last digit ID number) kN/m2 . . . + Determine the foll6owing: a. Lateral Earth Force at Rest b. Active Earth Pressure (Rankine and Coulomb) c. Passive Earth Pressure (Rankine and Coulomb)
