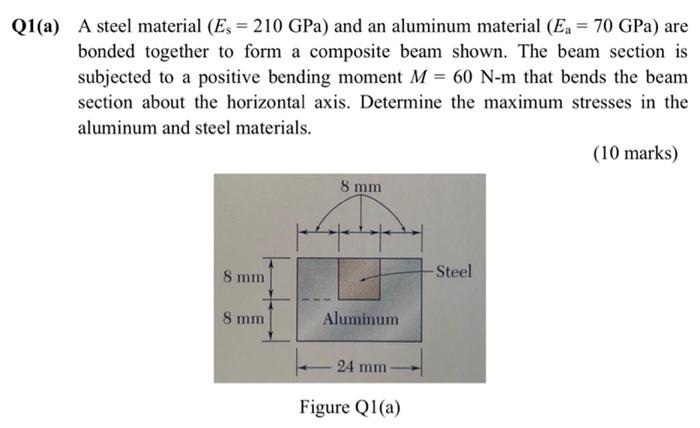

Q1(a) A steel material (Es = 210 GPa) and an aluminum material (Ea = 70 GPa) are bonded together to form a composite beam shown. The beam section is subjected to a positive bending moment M = 60 N-m that bends the beam section about the horizontal axis. Determine the maximum stresses in the aluminum and steel materials. (10 marks) 8 mm 8 mm Steel 8 mm Aluminum 24 mm Figure Ql(a)
