2. The beam with cross-section shown carries a uniformly distributed load of intensity w over its entire length. Determi

Post by answerhappygod »

2 The Beam With Cross Section Shown Carries A Uniformly Distributed Load Of Intensity W Over Its Entire Length Determi 1
2 The Beam With Cross Section Shown Carries A Uniformly Distributed Load Of Intensity W Over Its Entire Length Determi 1 (53.07 KiB) Viewed 27 times

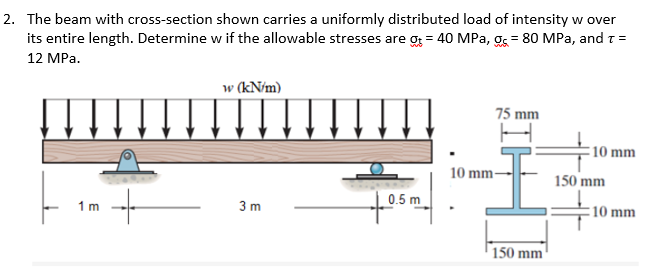

2. The beam with cross-section shown carries a uniformly distributed load of intensity w over its entire length. Determine w if the allowable stresses are 0 = 40 MPa, Os = 80 MPa, and t = 12 MPa. w (kN/m) 75 mm 10 mm 10 mm 150 mm 1m 3 m 0.5 m m 10 mm 150 mm
