= Q1(a) A steel material (Es = 210 GPa) and an aluminum material (Ea = 70 GPa) are bonded together to form a composite b

Post by answerhappygod »

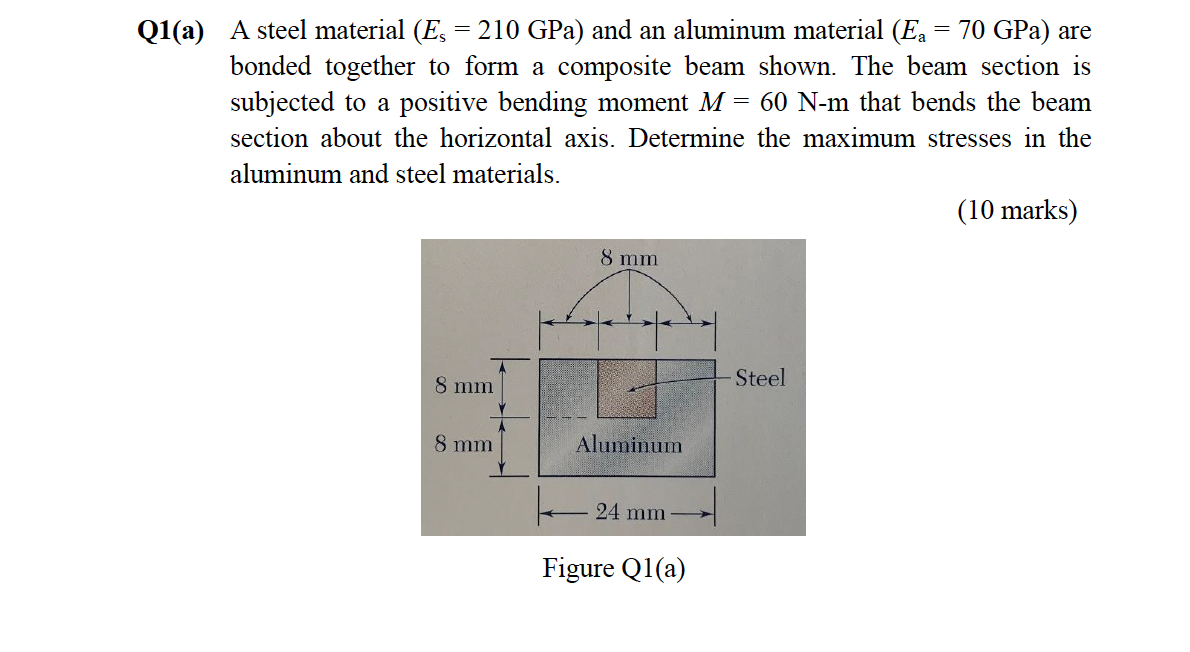

Q1 A A Steel Material Es 210 Gpa And An Aluminum Material Ea 70 Gpa Are Bonded Together To Form A Composite B 1
Q1 A A Steel Material Es 210 Gpa And An Aluminum Material Ea 70 Gpa Are Bonded Together To Form A Composite B 1 (215.67 KiB) Viewed 37 times
= Q1(a) A steel material (Es = 210 GPa) and an aluminum material (Ea = 70 GPa) are bonded together to form a composite beam shown. The beam section is subjected to a positive bending moment M = 60 N-m that bends the beam section about the horizontal axis. Determine the maximum stresses in the aluminum and steel materials. (10 marks) 8 mm 8 mm Steel 8 mm Aluminum 24 mm Figure Ql(a)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
