Using the moment distribution method, calculate the reactions then sketch the bending moment diagram for the beam shown.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Using the moment distribution method, calculate the reactions then sketch the bending moment diagram for the beam shown.

Post by answerhappygod »

Using The Moment Distribution Method Calculate The Reactions Then Sketch The Bending Moment Diagram For The Beam Shown 1
Using The Moment Distribution Method Calculate The Reactions Then Sketch The Bending Moment Diagram For The Beam Shown 1 (89.02 KiB) Viewed 23 times

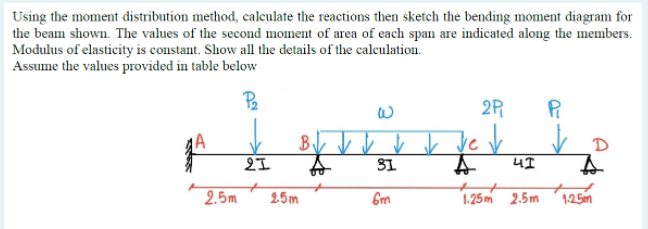

Using the moment distribution method, calculate the reactions then sketch the bending moment diagram for the beam shown. The values of the second moment of area of each span are indicated along the members. Modulus of elasticity is constant. Show all the details of the calculation. Assuine the values provided in table below P2 2P P BV V V V V ve v 2I A 41 A 2.5m 2.5m 6m 1.25m 2.5m 1.25m Je 31
