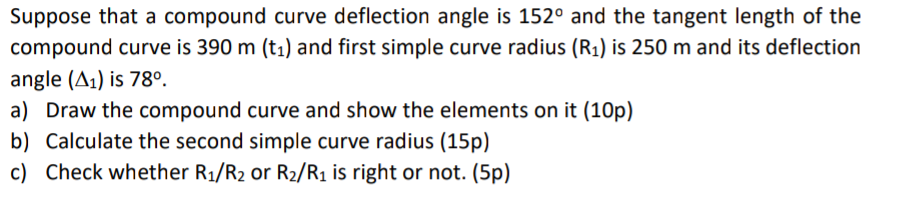

Suppose that a compound curve deflection angle is 152º and the tangent length of the compound curve is 390 m (tı) and first simple curve radius (R1) is 250 m and its deflection angle (41) is 78° a) Draw the compound curve and show the elements on it (10p) b) Calculate the second simple curve radius (15p) c) Check whether R1/R2 or R2/R1 is right or not. (5p)
