a) Calculate the support reaction forces of the beam/shaft. b) Draw the shear force and bending moment diagram. Label an

Post by answerhappygod »

A Calculate The Support Reaction Forces Of The Beam Shaft B Draw The Shear Force And Bending Moment Diagram Label An 1
A Calculate The Support Reaction Forces Of The Beam Shaft B Draw The Shear Force And Bending Moment Diagram Label An 1 (94.15 KiB) Viewed 29 times

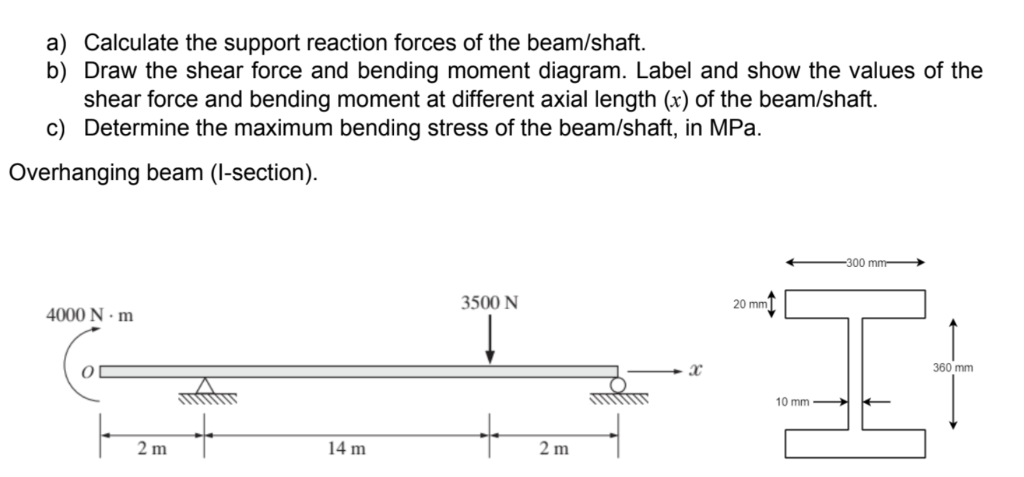

a) Calculate the support reaction forces of the beam/shaft. b) Draw the shear force and bending moment diagram. Label and show the values of the shear force and bending moment at different axial length (x) of the beam/shaft. c) Determine the maximum bending stress of the beam/shaft, in MPa. Overhanging beam (I-section). -300 mm 3500 N 20 mm 4000 Nm IH o 2 360 mm 10 mm + + 2 m 14 m 2 m
