Two solenoids A and B, spaced close to each other and sharing the same cylindrical axis, have 460 and 580 turns, respect
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Two solenoids A and B, spaced close to each other and sharing the same cylindrical axis, have 460 and 580 turns, respect

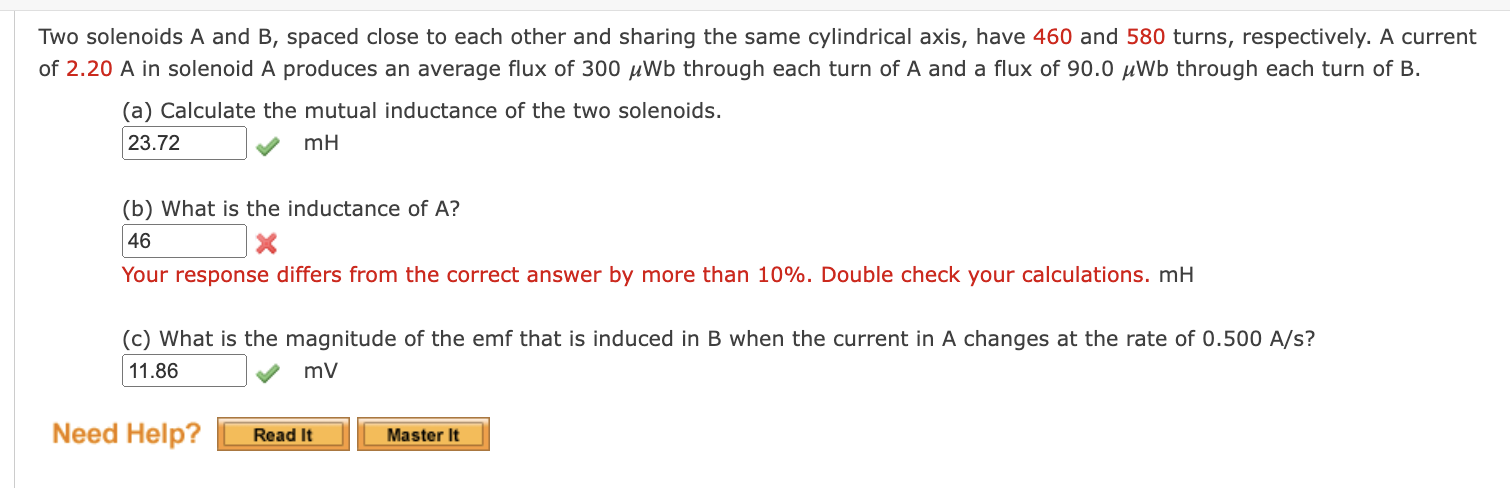

Two solenoids A and B, spaced close to each other and sharing the same cylindrical axis, have 460 and 580 turns, respectively. A current of 2.20 A in solenoid A produces an average flux of 300 uwb through each turn of A and a flux of 90.0 uWb through each turn of B. (a) Calculate the mutual inductance of the two solenoids. 23.72 mH (b) What is the inductance of A? 46 X Your response differs from the correct answer by more than 10%. Double check your calculations, mH (c) What is the magnitude of the emf that is induced in B when the current in A changes at the rate of 0.500 A/s? 11.86 mv Need Help? Read It Master It
