The rectangular bar shown is connected to a support bracket with a 17 mm diameter pin. The width of the rectangular bar
-
- Site Admin
- Posts: 899558
- Joined: Mon Aug 02, 2021 8:13 am
The rectangular bar shown is connected to a support bracket with a 17 mm diameter pin. The width of the rectangular bar
question is not asking about any stresses in the support bracket...just bearing stress in the rectangular bar. Rectangular bar Support bracket Answer: Pmax= i KN

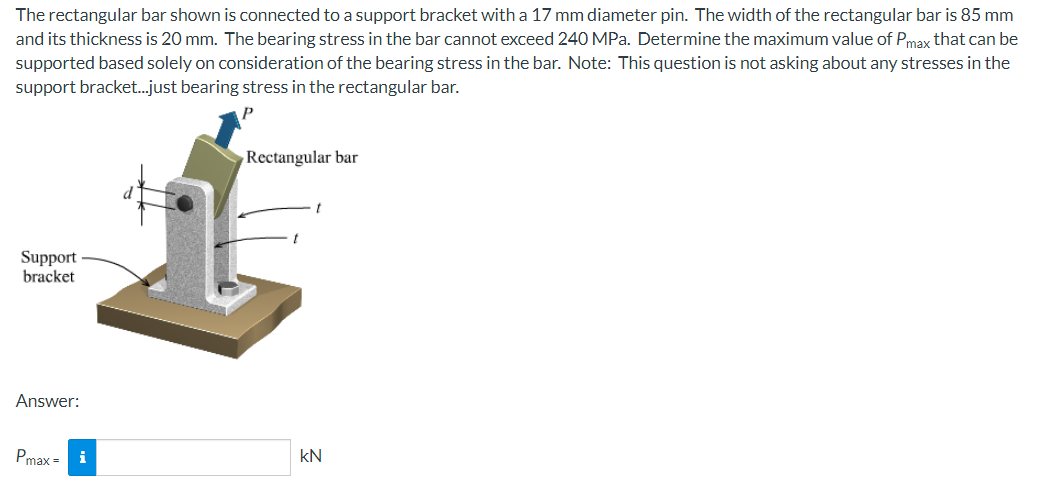

The rectangular bar shown is connected to a support bracket with a 17 mm diameter pin. The width of the rectangular bar is 85 mm and its thickness is 20 mm. The bearing stress in the bar cannot exceed 240 MPa. Determine the maximum value of Pmax that can be supported based solely on consideration of the bearing stress in the bar. Note: This
