Question 1. (60 Points) The figure shows a function generator linkage in which the motion of rocker 2 corresponds to x a

[answerhappygod]

Question 1 60 Points The Figure Shows A Function Generator Linkage In Which The Motion Of Rocker 2 Corresponds To X A 1 (34.98 KiB) Viewed 21 times

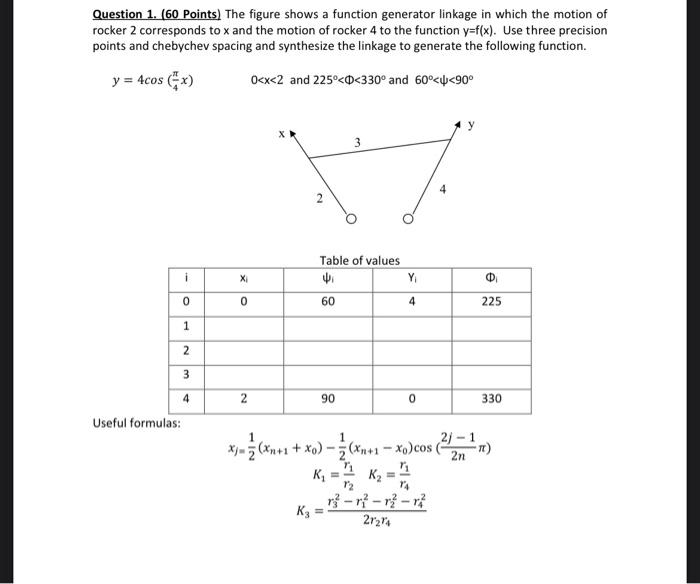

Question 1. (60 Points) The figure shows a function generator linkage in which the motion of rocker 2 corresponds to x and the motion of rocker 4 to the function y=f(x). Use three precision points and chebychev spacing and synthesize the linkage to generate the following function. y = 4cos (x) 0<x<2 and 225°<O<330° and 60°<«<90° 3 Table of values i X Y Ф 0 o 60 4 225 1 2 3 4 2 90 330 Useful formulas: 1 xaj nį (n+1 + xo) – (Xuva – xocos ( 21 - 1 7) 2n K- 12 14 r} Fr? r? - ri K3 = 2r24
