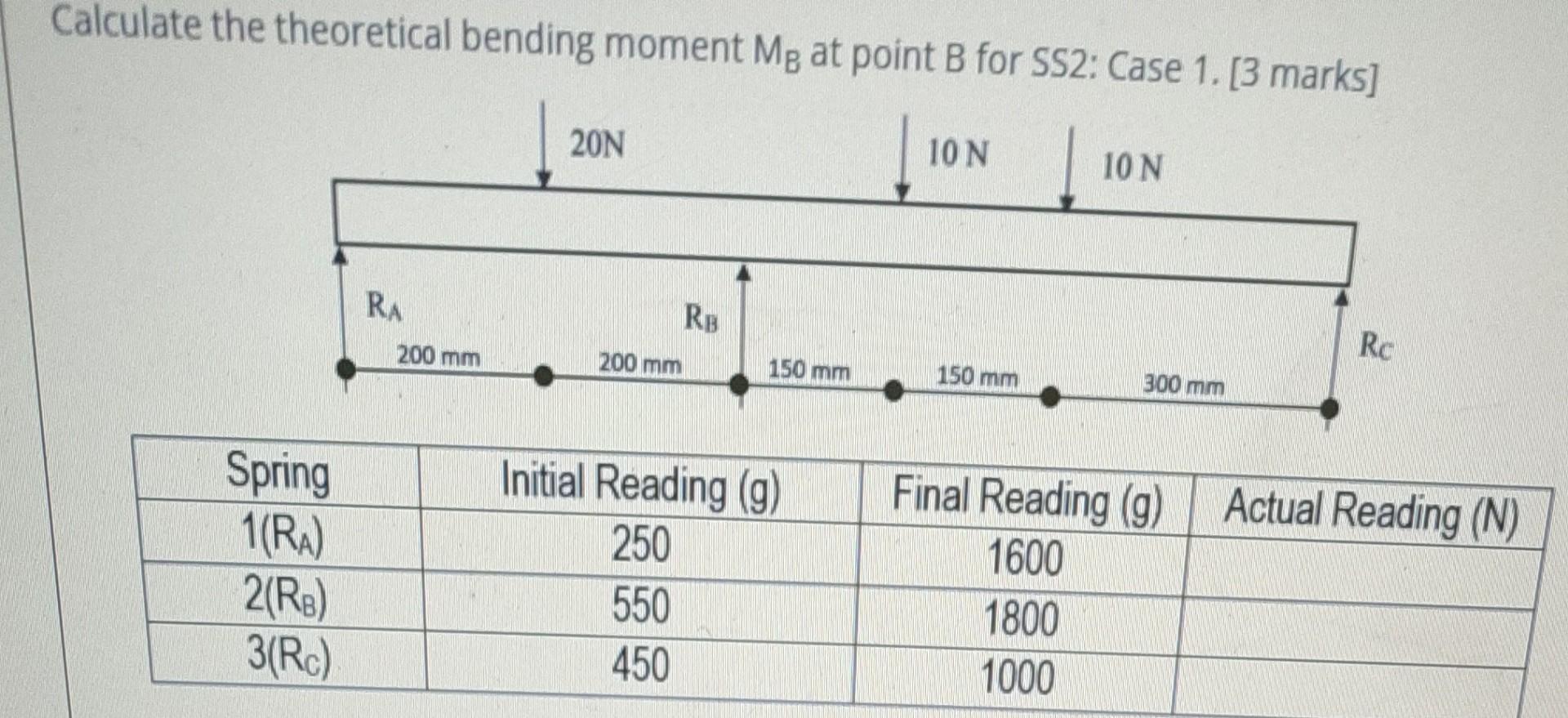

Calculate the theoretical bending moment Mg at point B for SS2: Case 1. [3 marks] 20N 10N 10 N RA RB 200 mm Rc 200 mm 150 mm 150 mm 300 mm Actual Reading (N) Spring 1(RA) 2(RB) 3(RC) Initial Reading (9) 250 550 450 Final Reading (9) 1600 1800 1000

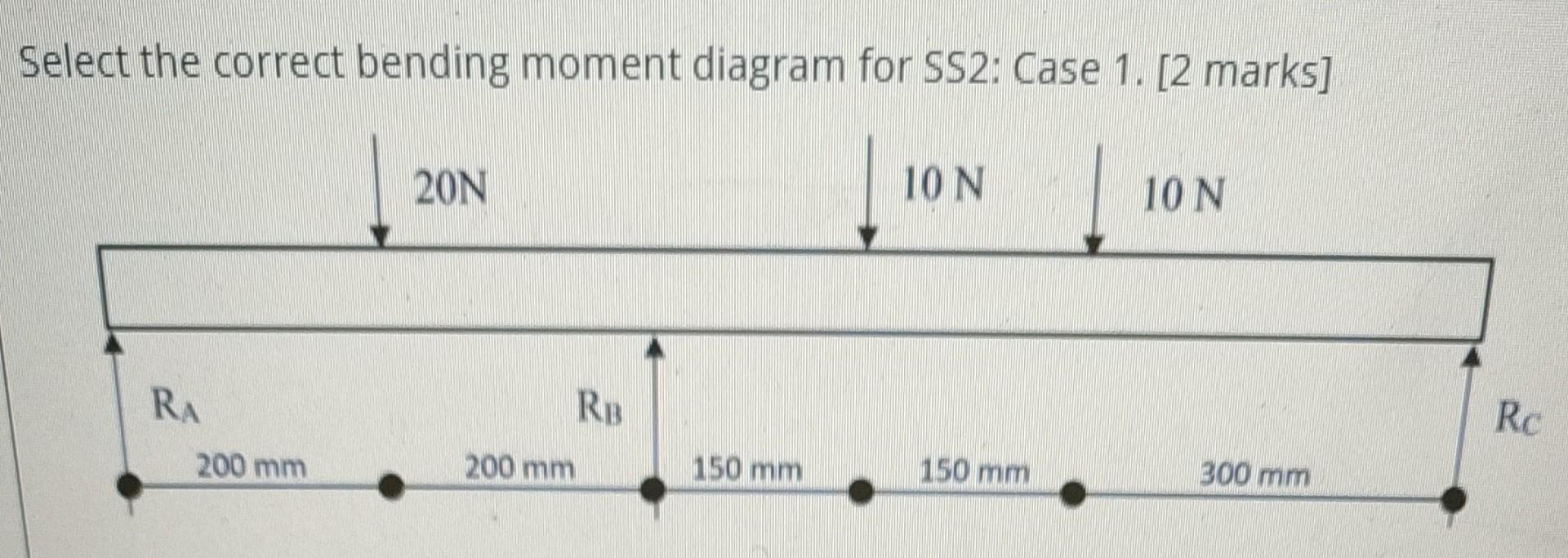

Select the correct bending moment diagram for SS2: Case 1. [2 marks] 20N 10 N 10 N RA RB Rc 200 mm 200 mm 150 mm 150 mm 300 mm

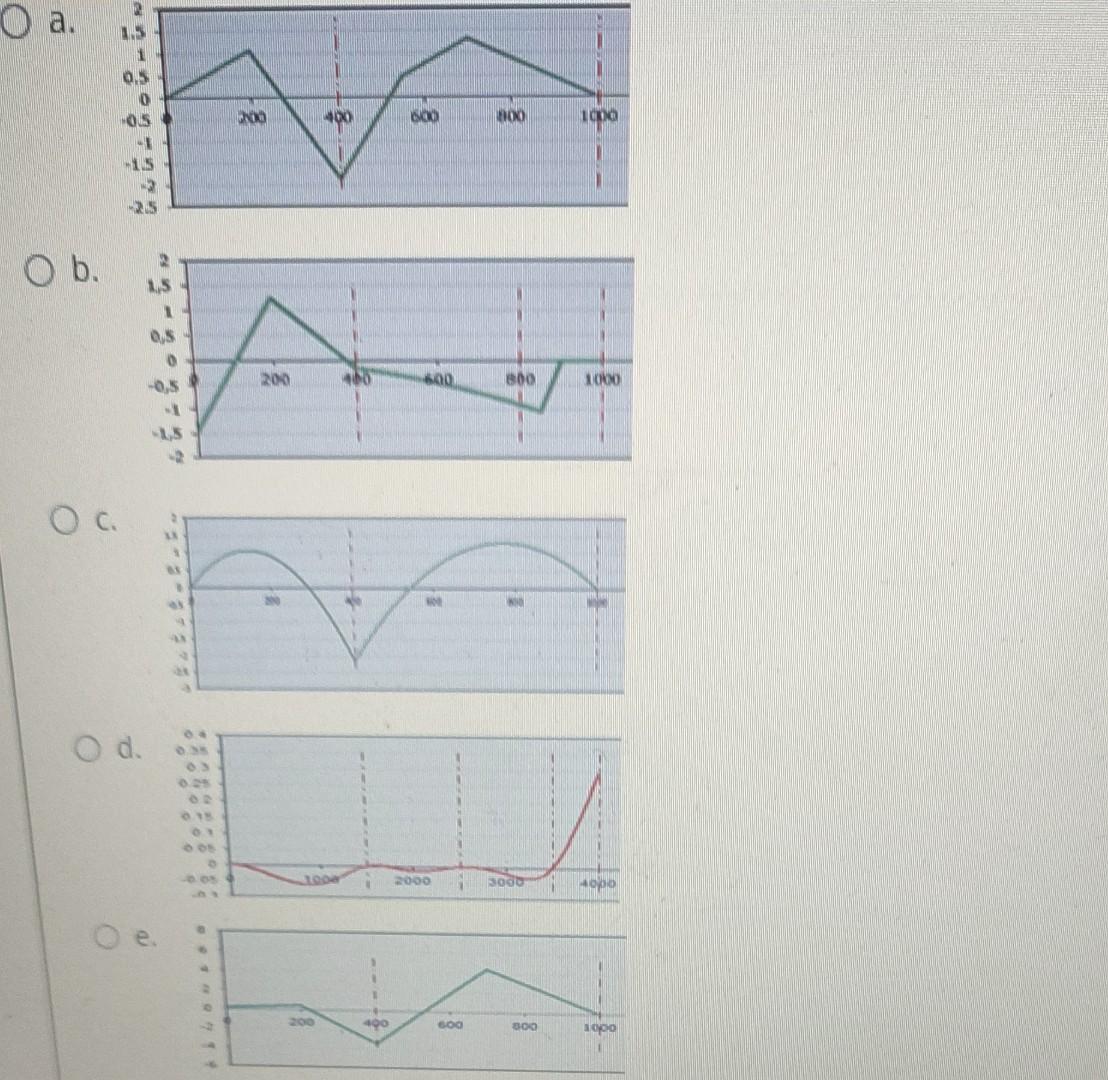

2 O a. SI SO 1 0.5 0 OLS - 15 AA 009 800 ***0 odb O b. 2 2,5 1 OS 0 -0,5 200 600 800 0001 2,5 Ос. O d. 1 1 2000 Soad 4000 . 200 400 GOO 000 100
