DRAG DROP -
You are tasked with creating a network that will accomplish the following requirements
Requirements:
1. The remote sales team must be able to connect to the corporate network
2. Each department must have ONLY two PCs and a server
3. Each department must be segmented from each other
4. The following VLANs have been designated:
a ) VLAN 2- Finance
b ) VLAN 12- Sales
c ) VLAN 22- Human Resources (HR)

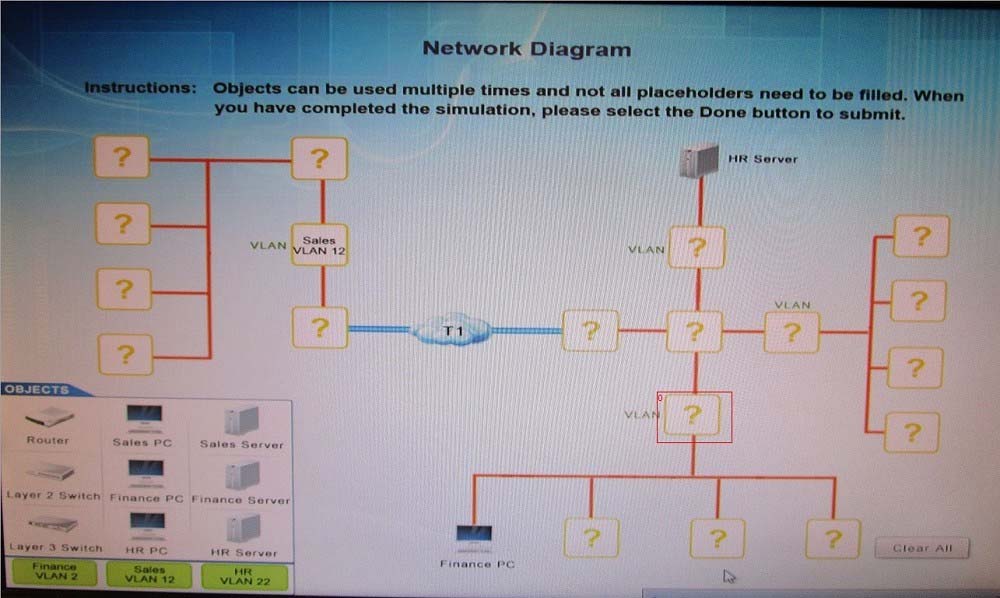

Complete the network by dragging the required objects into the diagram
INSTRUCTIONS: Objects can be used multiple times and not all placeholders need to be filled
Select and Place:
DRAG DROP - You are tasked with creating a network that will accomplish the following requirements Requirements: 1. The
-
