Enter the proper CLI command and analysis the outputs on the Cisco routers to answer the multiple-choice questions.

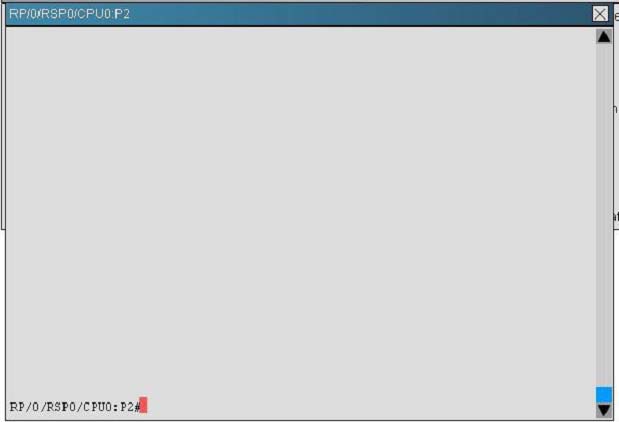

From the network topology diagram, click on the router icon to gain access to the console of the router.
No console or enable passwords are required.
There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.
Not all the CLI commands or commands options are supported or required for this simulation.
For example, the show running-config command is NOT supported in this simulation.
All the devices in this stimulation have been pre-configured and you are not required to enter in any configurations.
Scenario:

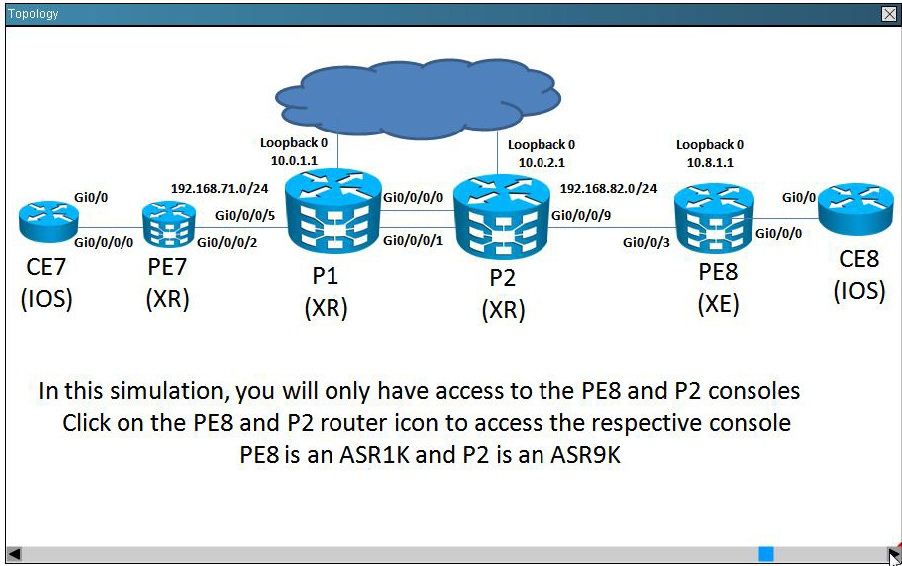

Referring to the network topology diagram shown in the exhibit, use the proper CLI commands on the PE8 and P2 routers and interpret the supported CLI commands outputs to answer the four multiple choice questions.
On P2IOS-XR router what is targeted LDP hellos hold time on LDP session with 10.0.1.1:0 LDP ID?
- Instructions En 1 (365.77 KiB) Viewed 78 times
- Instructions En 2 (10.7 KiB) Viewed 78 times
- Instructions En 3 (12.23 KiB) Viewed 78 times
B. 10 sec
C. 3 sec
D. 8.6 sec
