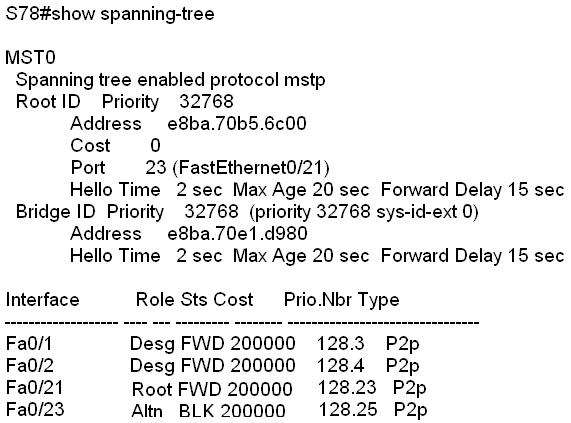

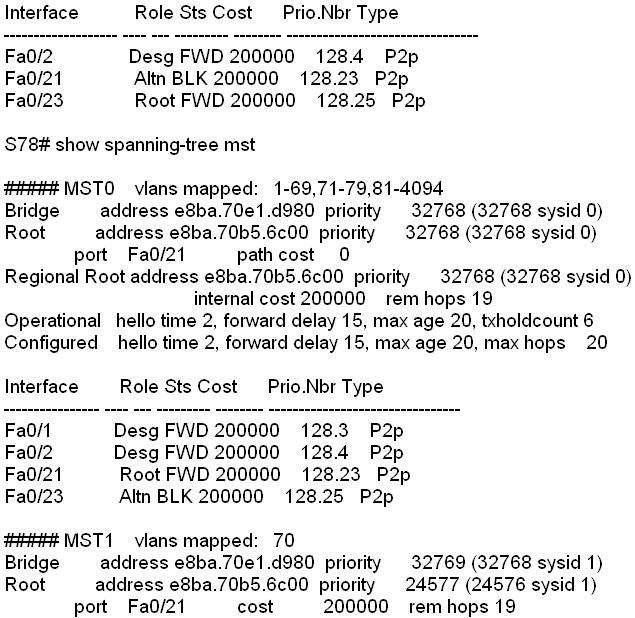

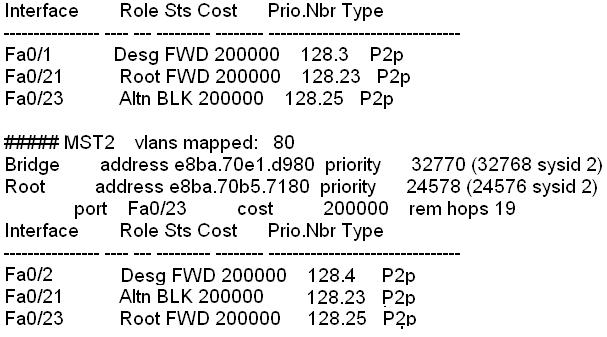

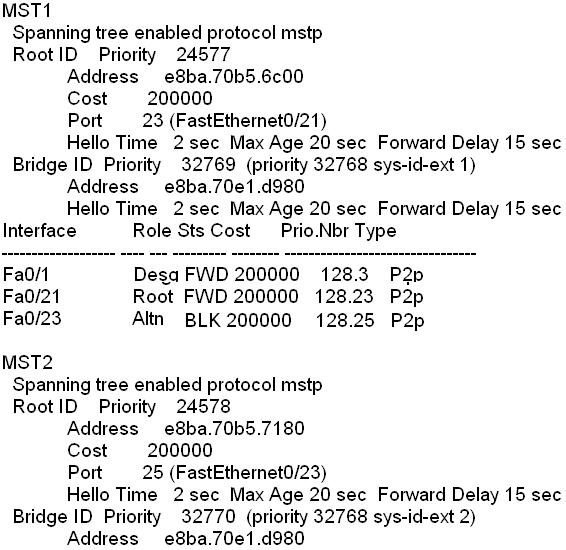

Refer to the two show output examples below. The switch with the e8ba.70b5.7180 MAC address is the root bridge for which VLAN or VLANs?
- Refer To The Tw 1 (107.79 KiB) Viewed 95 times
- Refer To The Tw 2 (152.14 KiB) Viewed 95 times
- Refer To The Tw 3 (203.59 KiB) Viewed 95 times
- Refer To The Tw 4 (107.72 KiB) Viewed 95 times
A. VLAN 1
B. VLAN 70
C. VLAN 80
D. VLANs 1, 70, and 80
E. VLANs 1 and 70
F. VLANs 1 and 80
G. VLANs 70 and 80
