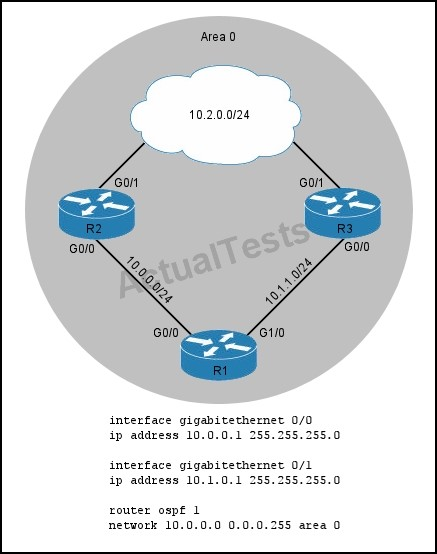

R1 is configured as shown. R1 is able to establish a neighbor adjacency only with R2. Which addition must you make to the R1 configuration to allow it to establish an adjacency with R3?
Refer To The Ex 1 (107.55 KiB) Viewed 57 times
A. interface gigabitethernet 0/1 ip address 10.1.0.1 255.255.255.0 ip ospf network point-to-point
B. interface gigabitethernet 0/1 ip address 10.1.0.1 255.255.255.0 ip ospf 1 area 0
C. router ospf 1 network 10.1.0.0 0.0.0.255 area 1
D. router ospf 1 "Pass Any Exam. Any Time." - www.actualtests.com 274
