Refer to the exhibit.

A user is performing a series of dialing steps on a SCCP IP phone (extension 1001) to call another SCCP IP phone (extension 2003). Both phones are registered to the same Cisco Unified Communications Manager cluster.
Which user inputs are sent from the calling IP phone to the Cisco Unified Communications Manager, in the form of SCCP messages, after the user takes the phone off-hook?
(The commas in the options are logical separators, not part of the actual user input or SCCP messages.)

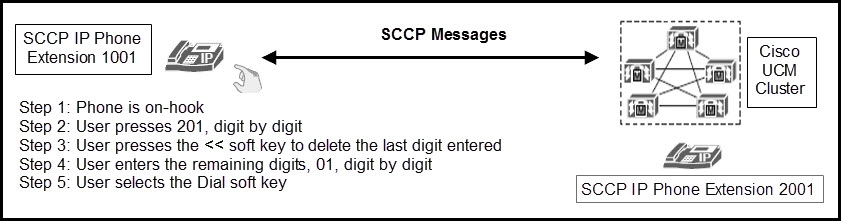

Refer To The Ex 1 (113.66 KiB) Viewed 57 times

A. A separate SCCP message is sent to the Cisco Unified Communications Manager for each of these user inputs: 2, 0, 0, 3.
B. A separate SCCP message is sent to the Cisco Unified Communications Manager for each of these user inputs: 2, 0, 1, <<, 0, 3.
C. The IP phone collects all keypad and soft key events until user inputs stops, then it sends a single SCCP message to report that 2003 has been dialed.
D. The IP phone collects all keypad and soft key events until user inputs stops, then it sends a single SCCP message to report that 201<<03 has been dialed.
E. A separate SCCP message is sent to the Cisco Unified Communications Manager for each of these user inputs: 2, 0, 1, <<, 2, 0, 0, 3.
