Refer to the exhibits. SanFrancisco and Boston routers are choosing slower links to reach each other despite the direct

Post by answerhappygod »

Refer to the exhibits. SanFrancisco and Boston routers are choosing slower links to reach each other despite the direct links being up.
Which configuration fixes the issue?

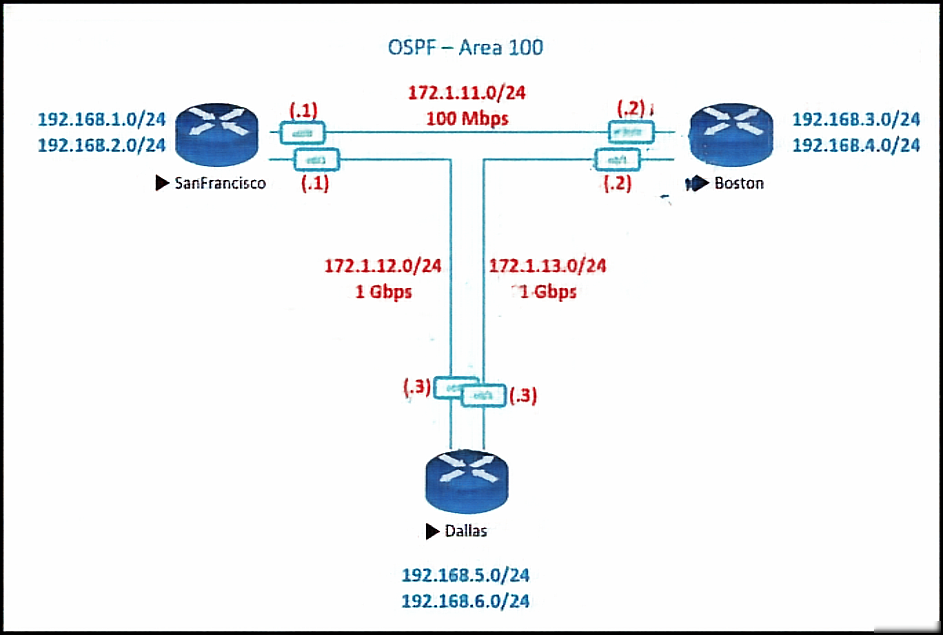

Refer To The Ex 1
Refer To The Ex 1 (199.67 KiB) Viewed 65 times

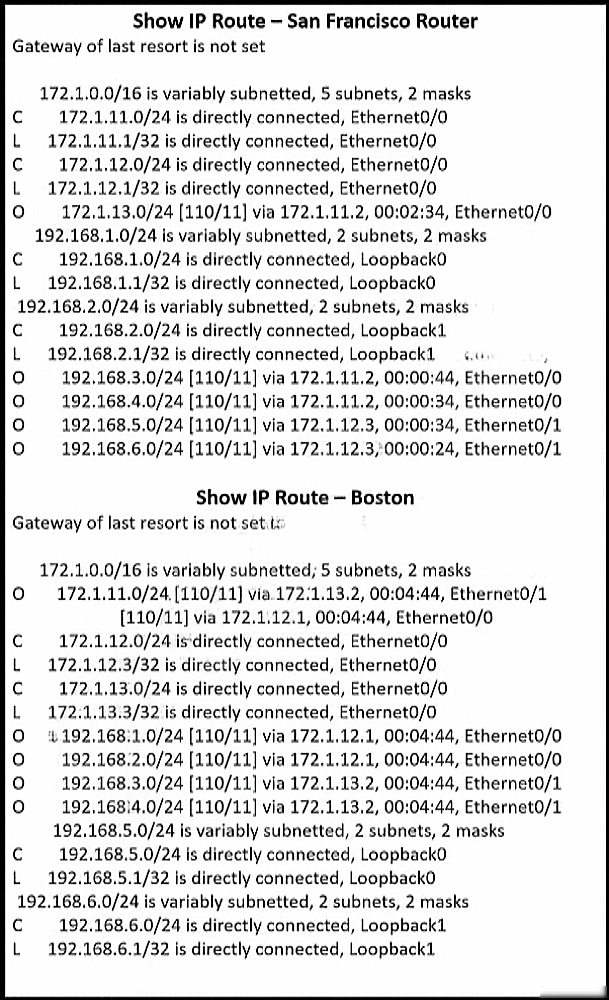

Refer To The Ex 2
Refer To The Ex 2 (571.43 KiB) Viewed 65 times
A. All Routers router ospf 1 auto-cost reference-bandwidth 100
B. SanFrancisco Router router ospf 1 auto-cost reference-bandwidth 1000
C. Boston Router router ospf 1 auto-cost reference-bandwidth 1000
D. All Routers router ospf 1 auto-cost reference-bandwidth 1000
