Refer to the exhibit. The East-WLC-2504A controller has been configured for WPA2 + PSK, although it isnt working properly. Refer to the exhibit to resolve the configuration issues.
WLAN ID: 11 -
Profile Name: Contractors -
SSID: Contractors -
VLAN: 2 -
Note, not all menu items, text boxes, or radio buttons are active.

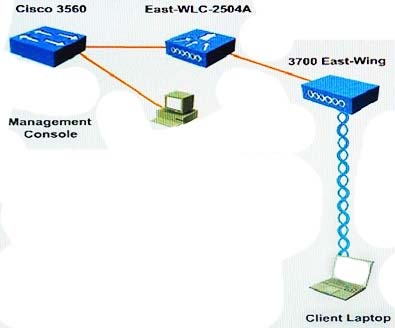

Topology -
Virtual Terminal -
Which configuration changes need to be made to allow WPA2 + PSK to operate properly on the East-WLC-2504A controller? (Choose four.)
- Scenario Refer 1 (13.73 KiB) Viewed 53 times

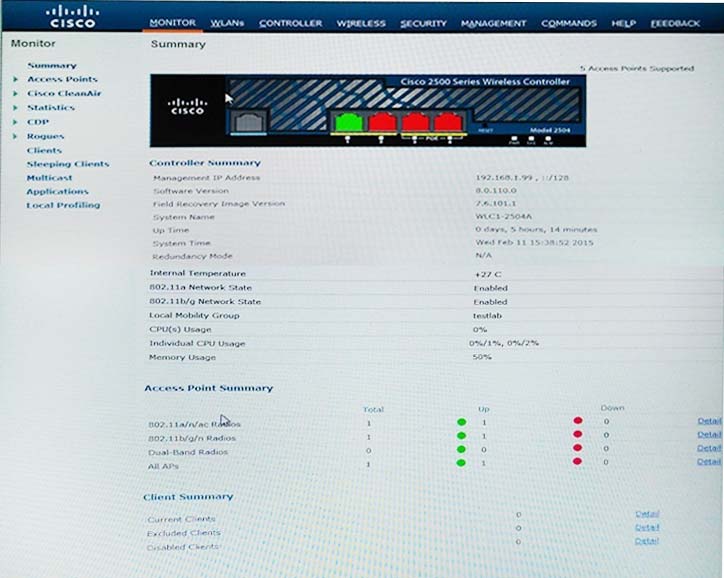

- Scenario Refer 2 (47.69 KiB) Viewed 53 times

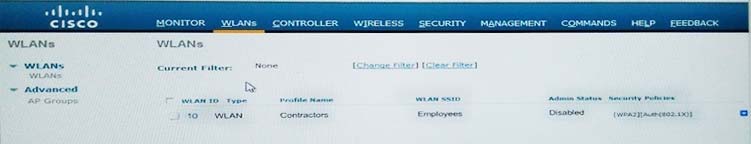

- Scenario Refer 3 (13.56 KiB) Viewed 53 times

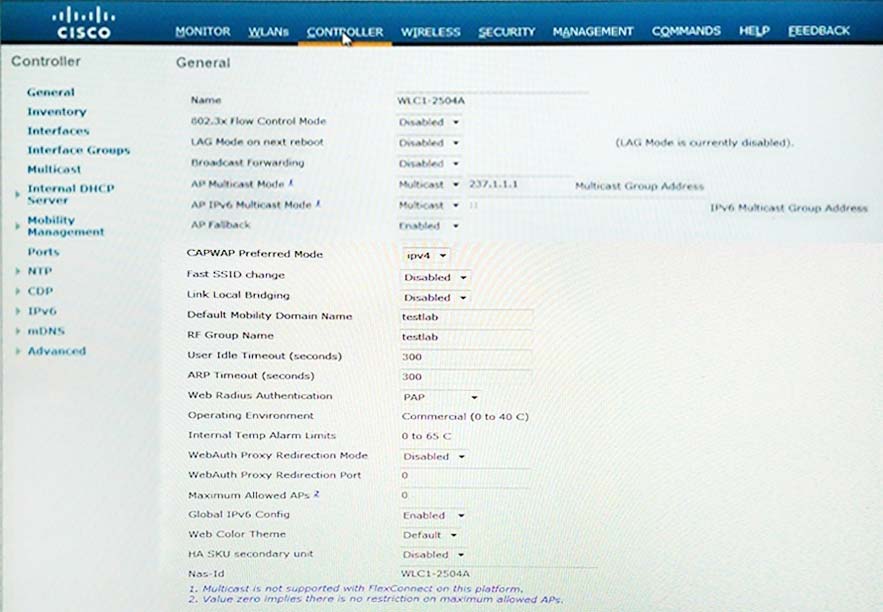

- Scenario Refer 4 (55.09 KiB) Viewed 53 times

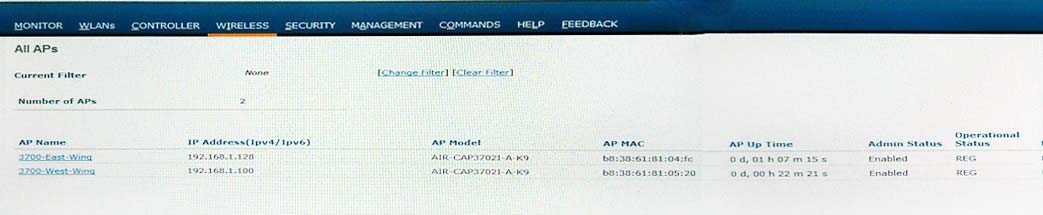

- Scenario Refer 5 (26.85 KiB) Viewed 53 times

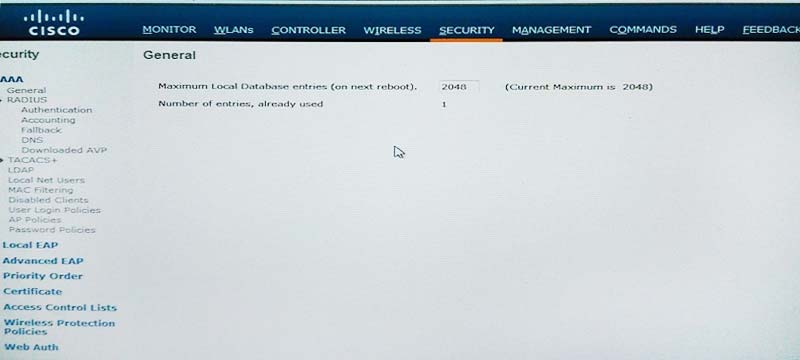

- Scenario Refer 6 (22.41 KiB) Viewed 53 times
B. Click on the Status Enabled radio button.
C. Change the Layer 3 Security to Web Policy.
D. Change the WPA + WPA2 Parameters to WPA2 Policy-AES.
E. Change the PSK Format to HEX.
F. Change the WLAN ID.
G. Change the VLAN Identifier.
H. Change the IP Address of the Virtual interface.
I. Change the IP Address of the Virtual interface.
J. Change the SSID name of the WLAN. K. Click on the PSK radio button and add the password in the text box.
