You are the senior network security administrator for your organization. Recently and junior engineer configured a site-to-site IPsec VPN connection between your headquarters Cisco ASA and a remote branch office.
You are now tasked with verifying the IKEvl IPsec installation to ensure it was properly configured according to designated parameters. Using the CLI on both the
Cisco ASA and branch ISR, verify the IPsec configuration is properly configured between the two sites.
NOTE: the show running-config command cannot be used for this exercise.

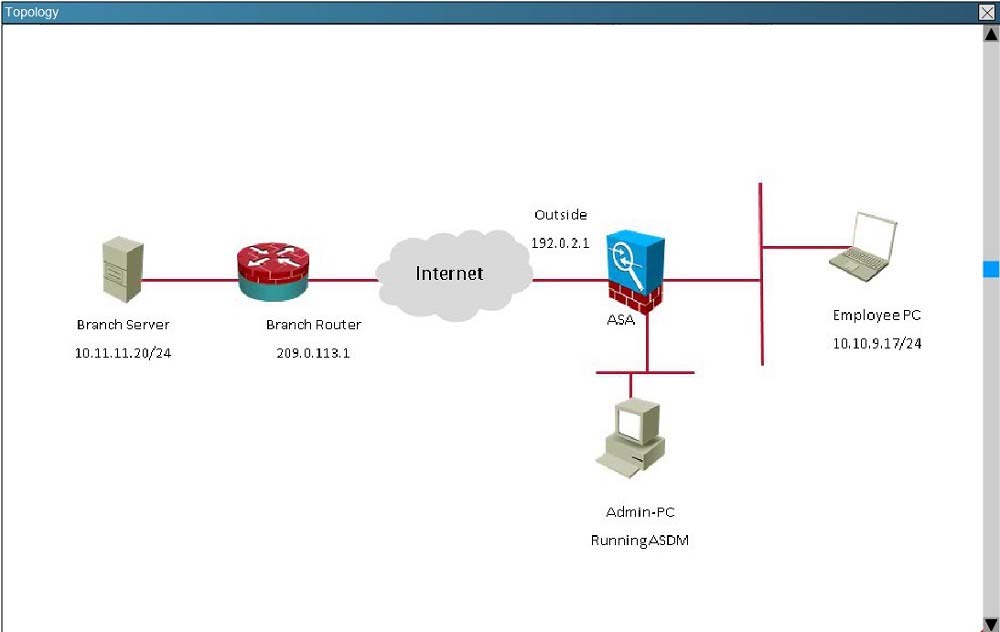

Topology:
Which crypto map tag is being used on the Cisco ASA?
- Scenario You Ar 1 (34.83 KiB) Viewed 73 times
- Scenario You Ar 2 (12.03 KiB) Viewed 73 times
- Scenario You Ar 3 (11.26 KiB) Viewed 73 times
B. VPN-to-ASA
C. L2L_Tunnel
D. outside_map1
