A customer network engineer has made configuration changes that have resulted in some loss of connectivity. You have been called in to evaluate a switch network and suggest resolutions to the problems.
You have configured PVST+ load balancing between SW1 and the New_Switch in such a way that both the links E2/2 and E2/3 are utilized for traffic flow, which component of the configuration is preventing PVST+ load balancing between SW1 and SW2 links

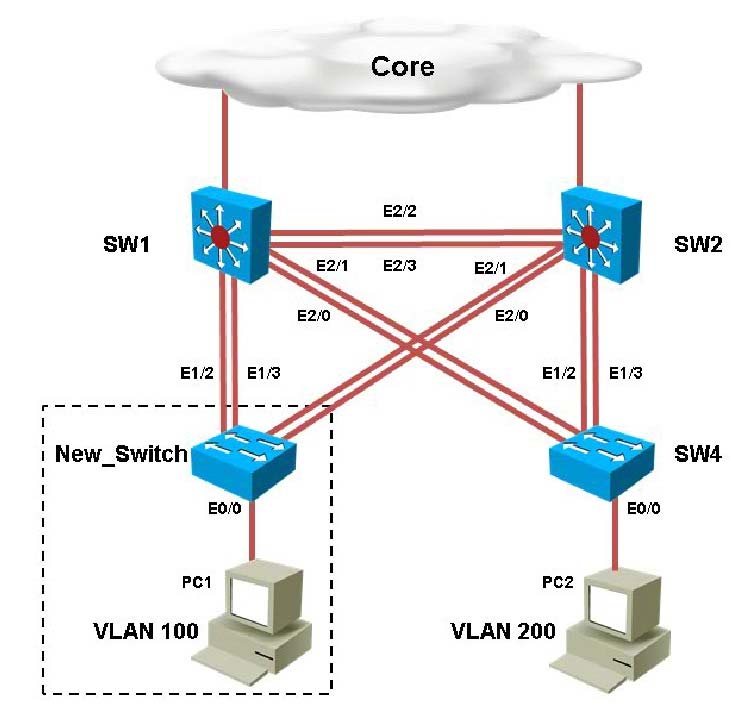

A Customer Netw 1 (49.22 KiB) Viewed 49 times

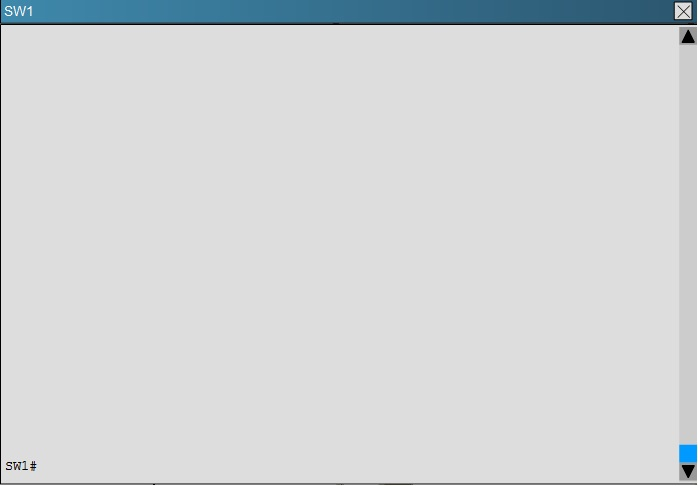

A Customer Netw 2 (14.83 KiB) Viewed 49 times

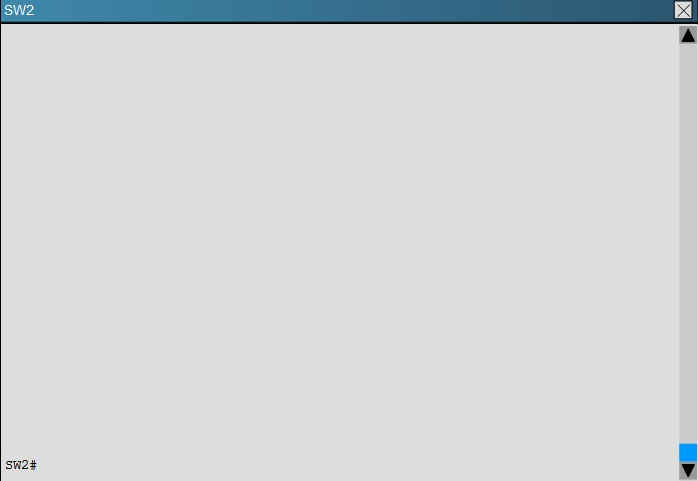

A Customer Netw 3 (13.83 KiB) Viewed 49 times

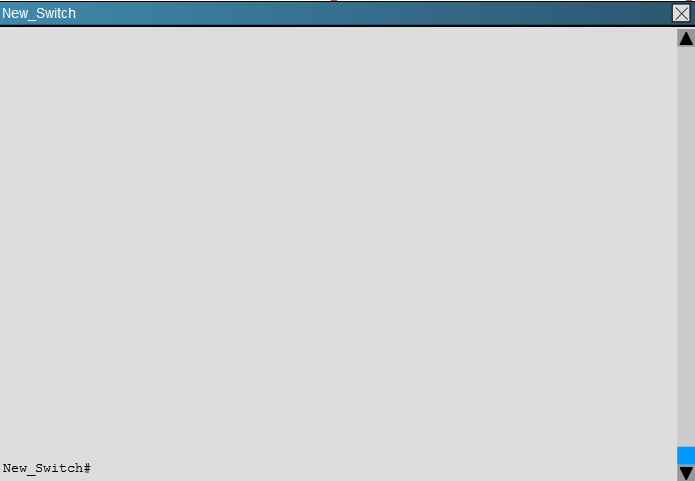

A Customer Netw 4 (21.44 KiB) Viewed 49 times
A Customer Netw 5 (13.71 KiB) Viewed 49 times
A. Port priority configuration on SW1
B. Port priority configuration on the New_Switch
C. Path cost configuration on SW1
D. Path cost configuration on the New_Switch
