Lab Simulation - AAA dot1x -

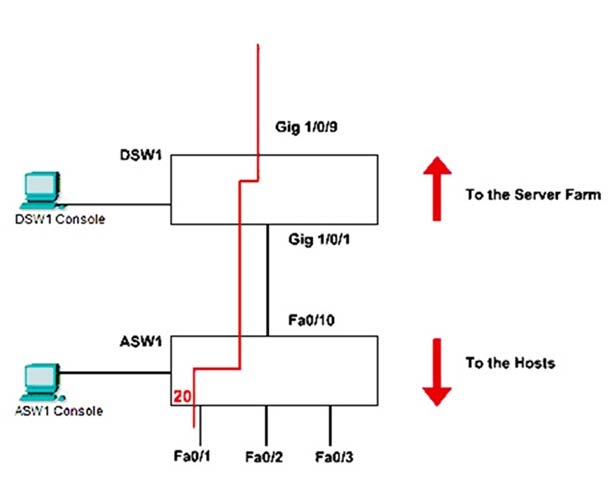

ABC.com is an IT company that has an existing enterprise network comprised of two layer 2 only switches; DSW1 and ASW1. The topology diagram indicates their layer 2 mapping. VLAN 20 is a new VLAN that will be used to provide the shipping personnel access to the server. Corporate polices do not allow layer 3 functionality to be enabled on the switches.
For security reasons, it is necessary to restrict access to VLAN 20 in the following manner:
Users connecting to VLAN 20 via portfO/1 on ASW1 must be authenticated before they are given access to the network. Authentication is to be done via a Radius server:
Radius server host: 172.120.40.46
Radius key: rad123 -
Authentication should be implemented as close to the host as possible.
Devices on VLAN 20 are restricted to the subnet of 172.120.40.0/24.
Packets from devices in the subnet of 172.120.40.0/24 should be allowed on VLAN 20.
Packets from devices in any other address range should be dropped on VLAN 20.
Filtering should be implemented as close to the serverfarm as possible.
The Radius server and application servers will be installed at a future date. You have been tasked with implementing the above access control as a pre-condition to installing the servers. You must use the available IOS switch features.
- Simulation Lab 1 (18.29 KiB) Viewed 56 times
