The 6to4 overlay tunnel configuration has been applied on each router to join isolated IPv6 networks over a IPv4 network.
Which statements regarding the 6to4 overlay tunnel is true?

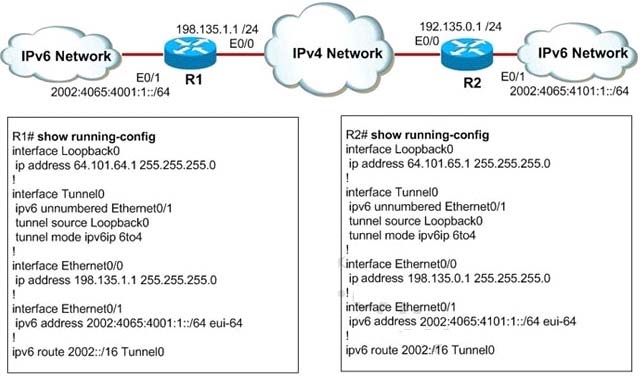

Refer To The Ex 1 (42.18 KiB) Viewed 51 times
A. The least significant 32 bits in the address referenced by the ipv6 route 2002::/16 Tunnel0 command will correspond to the interface E0/0 IPv4 address
B. The least significant 32 bits in the address referenced by the ipv6 route 2002::/16 Tunnel0 command will correspond to the IPv4 address assigned to the tunnel source
C. The configuration is invalid since the tunnel source command must be configured with an IPv6 address
D. This is actually a configuration example of an IPv4-compatible tunnel and not a 6to4 tunnel
E. This is actually a configuration example of an ISATAP overlay tunnel and not a 6to4 tunnel
