Instructions:
- Enter IOS commands on the device to verify network operation and answer for multiple-choice questions.
- THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
- Click on icon or the tab at the bottom of the screen to gain access to the console for each device.
- No console or enable passwords are required.
- To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.
- There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

Scenario -
You have been asked to evaluate an OSPF network setup in a test lab and to answer questions a customer has about its operation. The customer has disabled your access to the show running-config command.

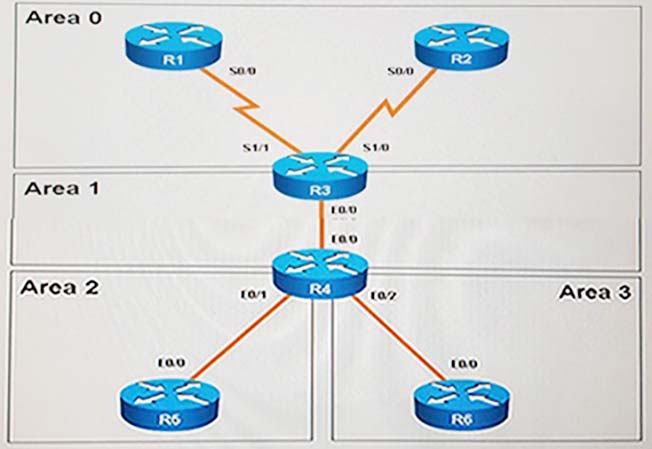

Topology:

Areas of Router 5 and Router 6 are not normal areas. Which statement is true based on their routing tables?

Instructions En 1 (28.19 KiB) Viewed 50 times

A. R5's Loopback and R6's Loopback are both present in R5's Routing table.
B. R5's Loopback and R6's Loopback are both present in R6's Routing table.
C. Only R5's Loopback is present in R5's Routing table.
D. Only R6's Loopback is present in R5's Routing table.
E. Only R5's Loopback is present in R6's Routing table.
