Assume that NANP is being used and 9 is used for PSTN access code Long distance national calls are preceded with 1.

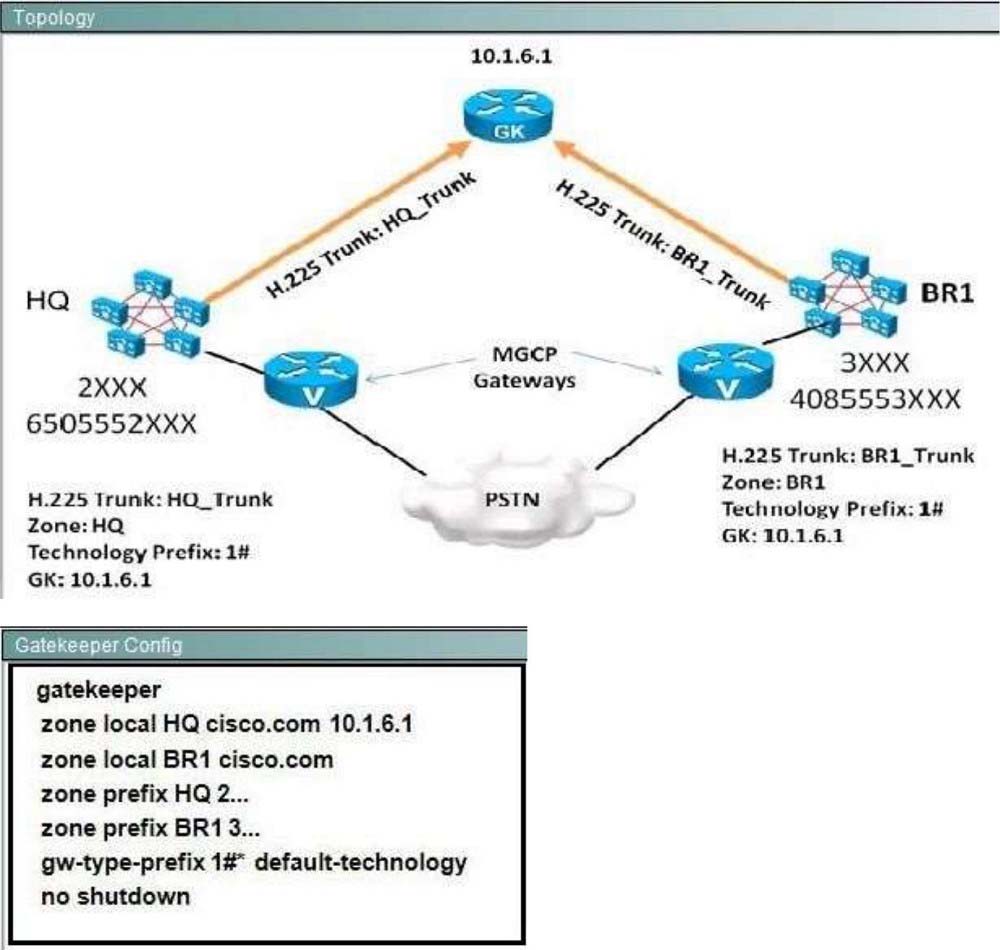

How should the HQ Cisco Unified Communications Manager be configured for calls to 3XXX to be sent to the gatekeeper at 1 0 1 6 1 with PSTN backups?
Refer To The Ex 1 (79.35 KiB) Viewed 56 times
A. Configure a route pattern for 3XXX Assign this route pattern to a route list that points to two route groups. The first route group contains the H 225 trunk. The second route group contains the MGCP gateway with prefix digits 1 408555 for the outgoing called number.
B. Configure a route pattern for 1#3XXX Assign this route pattern to a route list that points to a route group that lists the H 225 trunk as first choice and the MGCP gateway as a second choice.
C. Configure a route pattern for 4085543XXX. Assign this route pattern to a route list that points to two route groups. The first route group contains the H 226 trunk. The second route group contains MGCP gateway.
D. Configure a route pattern for 3XXX Assign this route pattern to a route list that points to two route groups. The first route group contains the H 225 trunk. The second route group contains MGCP gateway with prefix digits 91 408554 for the called number.
