Lab Simulation Question EIGRP -
CCNA.com has a small network that is using EIGRP as its IGP. All routers should be running an EIGRP AS number 12. Router MGT is also running static routing to the ISP.
CCNA.com has recently adding the ENG router. Currently, the ENG router does not have connectivity to the ISP router. All other interconnectivity and Internet access for the existing locations of the company are working properly. is to identify the fault(s) and correct the router configuration(s) to provide full connectivity between the routers.
The task -
Access to the router CLI can be gained by clicking on the appropriate host.
All passwords on all routers are cisco.
IP addresses are listed in the chart below.
MGT -
Fa0/0-192.168.77.33 -
S1/0-198.0.18.6 -
S0/0-192.168.27.9 -
S0/1-192.168.50.21 -
ENG -
Fa0/0-192.168.77.34 -
Fa1/0-192.168.12.17 -
Fa0/1-192.168.12.1 -
Parts1 -
Fa0/0-192.168.12.33 -
Fa0/1-192.168.12.49 -
S0/0-192.168.27.10 -
Parts2 -
Fa0/0-192.168.12.65 -
Fa0/1-192.168.12.81 -
S0/1-192.168.50.22 -

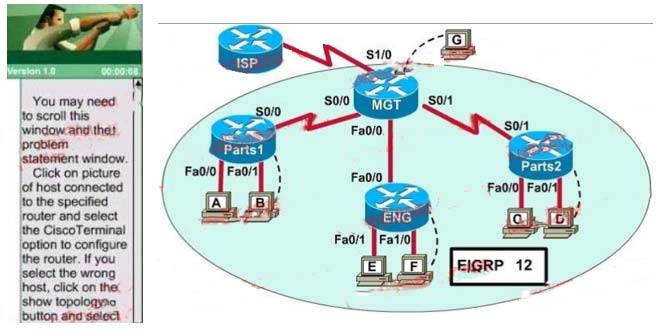

- Simulation Lab 1 (33.95 KiB) Viewed 49 times
