Refer to the following exhibit. Assuming all links have an equal metric in the IGP, where will Source Path Tree have be

[answerhappygod]

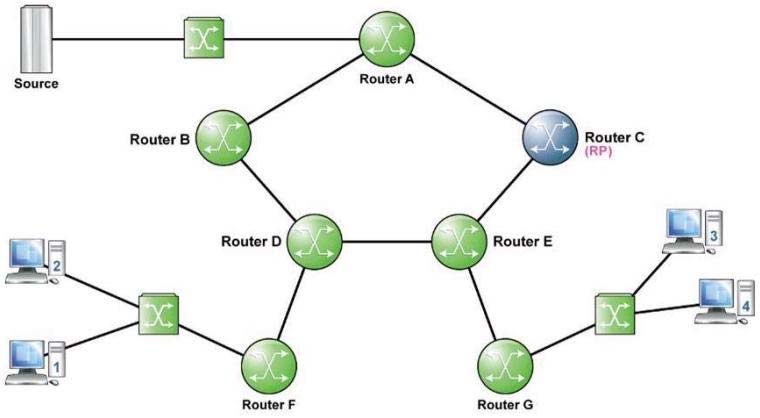

Refer to the following exhibit.

Assuming all links have an equal metric in the IGP, where will Source Path Tree have been created if Receiver 2 and Receiver 3 have joined the multicast group and the source is sending and the switchover has occurred? (Choose two)

Refer To The Fo 1 (26.36 KiB) Viewed 45 times

A. Router F-D-B-A
B. Router G-E-C-A
C. Router C-E-D-B-A
D. Router G-E-C
E. Router F-D-E-C
