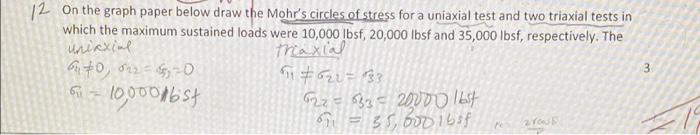

12. On the graph paper below draw the Mohr's circles of stress for a uniaxial test and two triaxial tests in which the maximum sustained loads were 10,000 lbsf, 20,000 lbsf and 35,000 lbsf, respectively. The Uniaxial traxial 6+0,042 = 1;-D ni tozu=33 922=632= 2000 1654 69 = 35,000 165 3 Gri = 10,00016 St

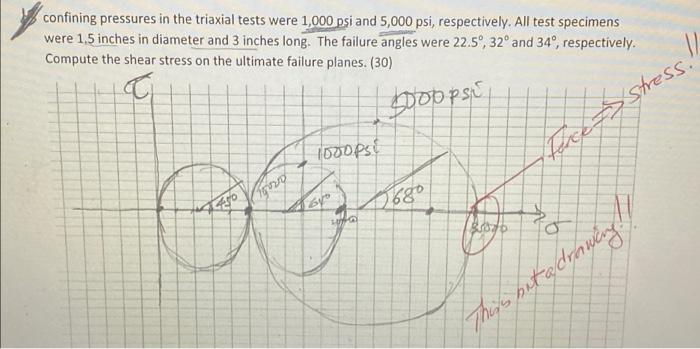

confining pressures in the triaxial tests were 1,000 psi and 5,000 psi, respectively. All test specimens were 1.5 inches in diameter and 3 inches long. The failure angles were 22.5°, 32° and 34°, respectively. Compute the shear stress on the ultimate failure planes. (30) DOPPS 10oops Tore stress og 2680 Born These het aldran drawing
