Question #4 (a) For the entire circuit shown in Fig. 4(a), calculate the following: 1. The power factor (leading or lagg

[answerhappygod]

Question 4 A For The Entire Circuit Shown In Fig 4 A Calculate The Following 1 The Power Factor Leading Or Lagg 1 (56.9 KiB) Viewed 39 times

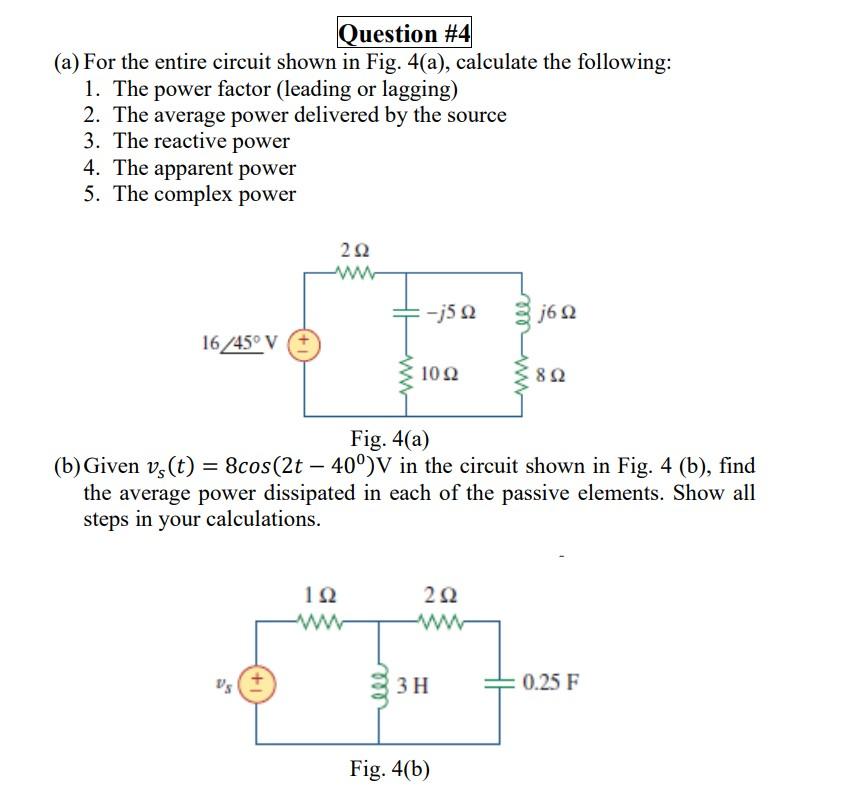

Question #4 (a) For the entire circuit shown in Fig. 4(a), calculate the following: 1. The power factor (leading or lagging) 2. The average power delivered by the source 3. The reactive power 4. The apparent power 5. The complex power 212 + -j5Ω le j6 Ω 16/45° V 10Ω 82 = Fig. 4(a) (b) Given vs(t) = 8cos(2t - 40°) V in the circuit shown in Fig. 4 (b), find the average power dissipated in each of the passive elements. Show all steps in your calculations. 22 122 w Us + le 3H 0.25 F Fig. 4(b)
