V Yanda verilen kısa konsolun ana donatı ve etriyelerini hesaplayınız ve şekil üzerinde çizerek gösteriniz. Fort the cor

Post by answerhappygod »

V Yanda Verilen Kisa Konsolun Ana Donati Ve Etriyelerini Hesaplayiniz Ve Sekil Uzerinde Cizerek Gosteriniz Fort The Cor 1
V Yanda Verilen Kisa Konsolun Ana Donati Ve Etriyelerini Hesaplayiniz Ve Sekil Uzerinde Cizerek Gosteriniz Fort The Cor 1 (387.75 KiB) Viewed 19 times

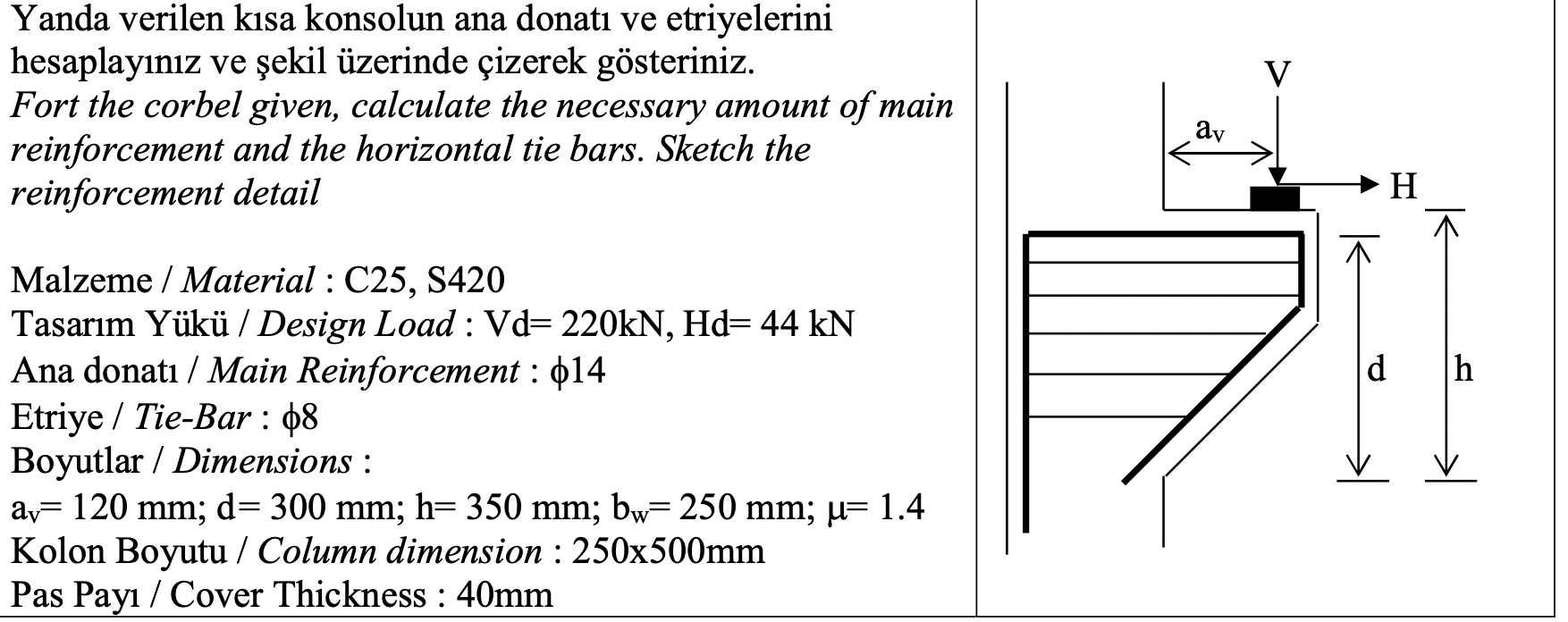

V Yanda verilen kısa konsolun ana donatı ve etriyelerini hesaplayınız ve şekil üzerinde çizerek gösteriniz. Fort the corbel given, calculate the necessary amount of main reinforcement and the horizontal tie bars. Sketch the reinforcement detail av H A d h Malzeme / Material : C25, S420 Tasarım Yükü / Design Load : Vd=220kN, Hd=44 KN Ana donati / Main Reinforcement : 014 Etriye / Tie-Bar : 08 Boyutlar / Dimensions : av= 120 mm; d= 300 mm; h= 350 mm; bw=250 mm; u= 1.4 Kolon Boyutu / Column dimension : 250x500mm Pas Payı / Cover Thickness : 40mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
